Product Description
Product Description

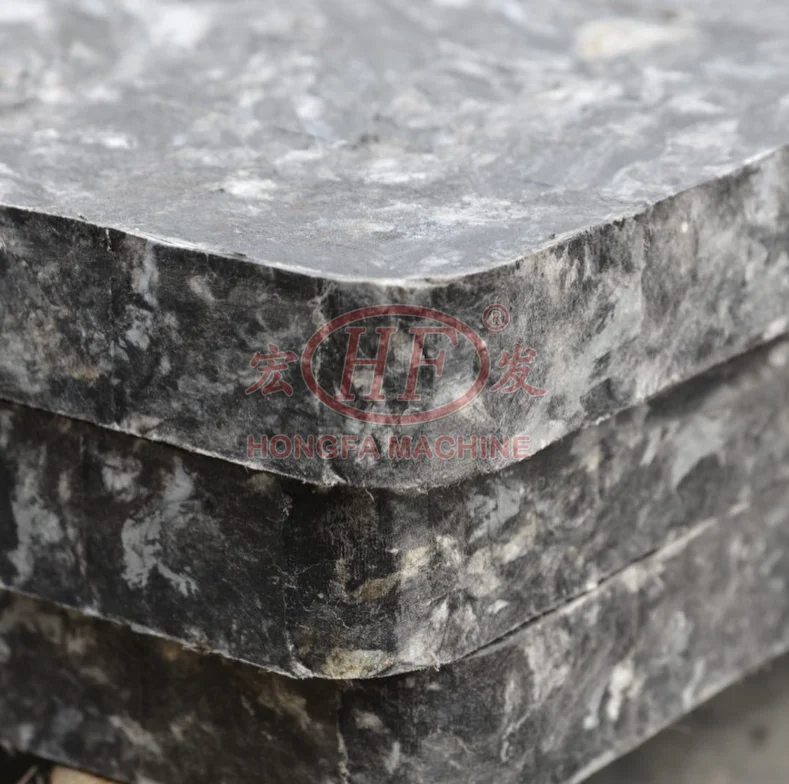

HONGFA GMT(Glass Mat reinforced Thermoplastics), or glass fiber mat reinforced thermoplastic composite material, which is made of fiber as reinforcing material and thermoplastic resin as base material made by method of heating and pressurizing. It becomes widely used composite material in the world and is considered as one of the most prospective development new material in the 21st century. 8 Years Life Spend Of Block Machine Tray Pvc Tray For Brick Production Line/plastic Tray For Block Machine With Low Price

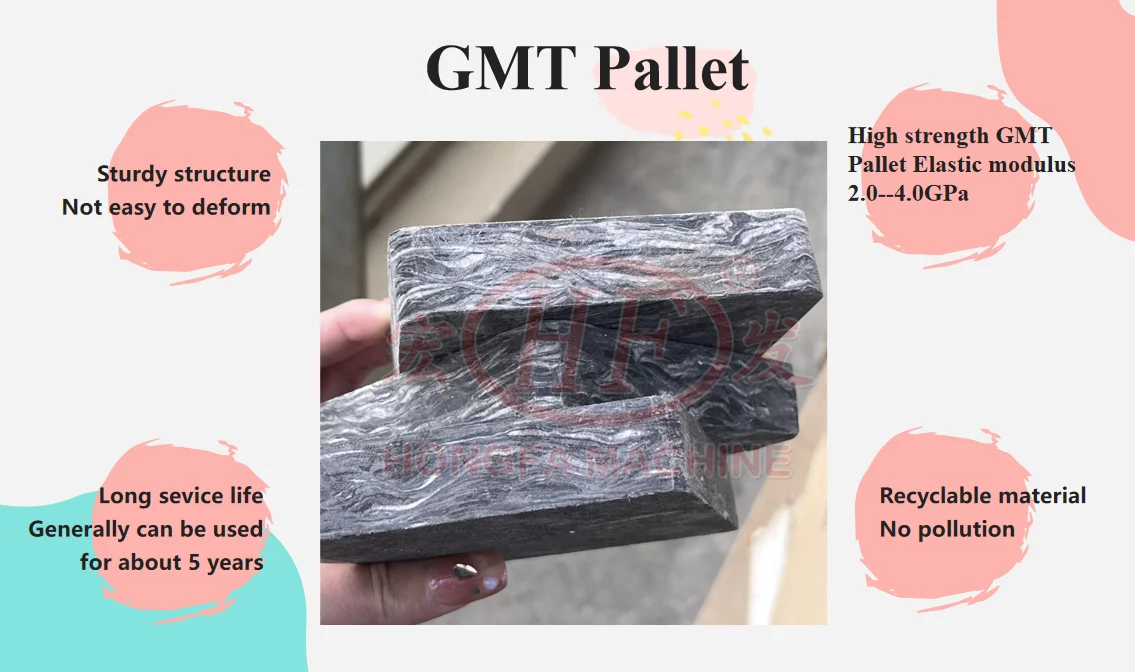

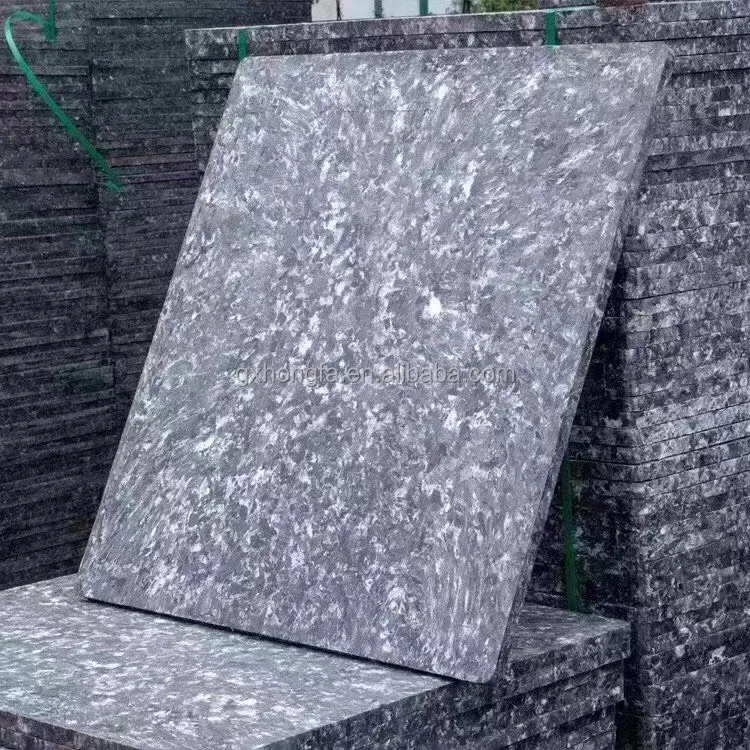

GMT light weight fiber pallet

Advantages

1. Light weight: The density of GMT brick pallet is just 1.2g/cm.just 60-70% of pvc pallet.more lighter than steel pallet. lightweight can reduce the freight and can load more pieces pallets.
2. Impact resistant: You can hit it whatever you want, it is very strong.
3. Less bending: Our GMT pallet can meet the pressure demands of every brands brick making machine in the world.
4. Waterproof and corrosion resistant: PP pallet is waterproof and corrosion resistant.
5- Longer lifetime: GMT pallet can use More than 7 years is no problem.

Specification
Specification

Size

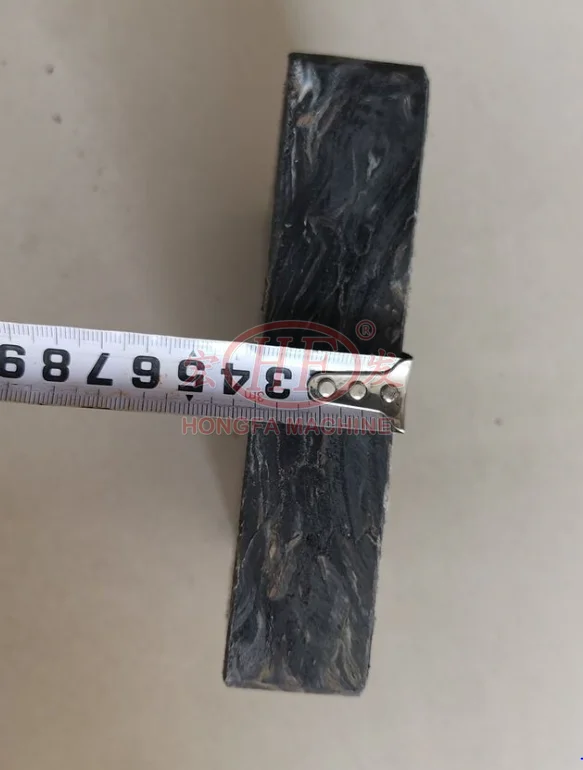

1420*900*30mm
Weight
42kg/pcs
QTY load in 20GP
547pcs
Density
1100 kg/m3
Bending Strength
more than 70 N/mm ²
Flexural Modulus
more than 4.5×10³Mpa
Impact Strength
more than 60 KJ/m²
Absorption
less than 0.4%
N/mm²
more than 40
Surface wear
less than 0.04g/100r
Service life
More than 6 years

Items
Characteristics
Technical Indicator
Outstanding Performance
Comparing with other Materials Pallet
1
Rigidity
Elasticity Modulas 3.7 GPa
No Deformation
More Rigid than same thickness solid wood pallet
2
High Load Bearing
Max load 2.0 kn,Bending Strength 51.0 MPa
Stand big pressure, high load, and brings no rupture
Higher Load Bearing than same thickness PVC and solid wood Pallet
3
Anti-abrasion
Shore Hardness 72
Long Life Span
Better Performance than plywood and bamboo wood Pallet
4
Anti-impact
Withstand Impact of 20KJ/m2
Vibration Resistant, Anti-fall, and no Cracking
Better Performance than plywood and solid wood Pallet
5
Weather Resistant
Operating Temperature between -40°C--90°C
Insolation Resistant, Anti-aging, and Suit for Steam Curing
Better Performance than PVC, steel and bamboo wood Pallet
6
Erosion Resistant
Resistance of most Acid, Alkali, and Salt
Protect inner steel and bamboo against rust and mildew
Better Performance than bamboo wood and steel Pallet
7
No Water Immersion
Water Immersion Rate <0.5%
Protect inner bamboo(wood) board
Better Performance than bamboo wood Pallet
8
Light Weight
Density<1
Effort Saving and Friction Reducing
Lighter than PVC and Steel Pallet
9
Life Span
Life Span can reach 8 years theoretically
Low Cost
Better Performance than PVC and bamboo wood Pallet
10
High Performance
High Performance and Low Cost
Extremely Low Cost during long time using
Better than all other materi

Related Products
Related Products

Some main technical data of PVC pallet:

1. Bending Strength: more than 70 N/mm 2
2. Flexural Modulus: more than 4.5×103 Mpa
3. Impact Strength: more than 60 KJ /m 2
4. Absorption: less than 14%
5. Density of the PVC pallet: 1.75 g/cm3
6. Temperature tolerance: 60 degree
7. Surface wear: less than 0.04 g/100r
8. Service life: More than 8 years

Both the PVC pallet and GMT pallet now are widely applied to the block making industry,we have exported our PVC pallet and GMT pallet to more than 40 countries and regions,and our pallet pride us with its stable performance and long services terms.

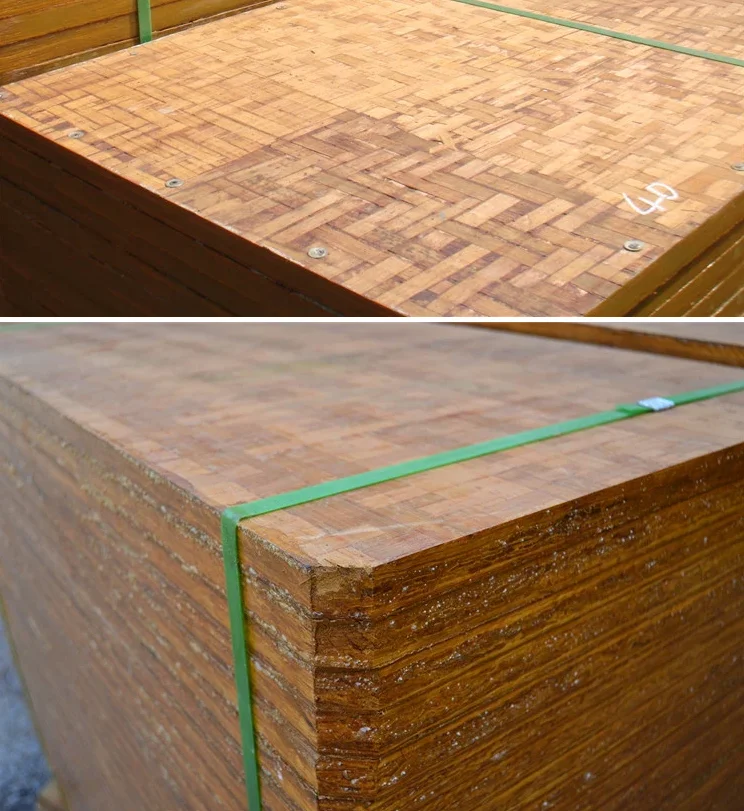

Some main technical data of Bamboo pallet : which is in cheaper price.
Density
850kg/m3
Bending Strength
≥ 70 N/mm ²
Flexural Modulus
≥4.5×10³Mpa
Impact Strength
≥60 KJ/m²
Absorption
≤14%
N/mm²
≥ 40
Surface wear
≤0.04g/100r

why you need the block pallet for concrete block machine?

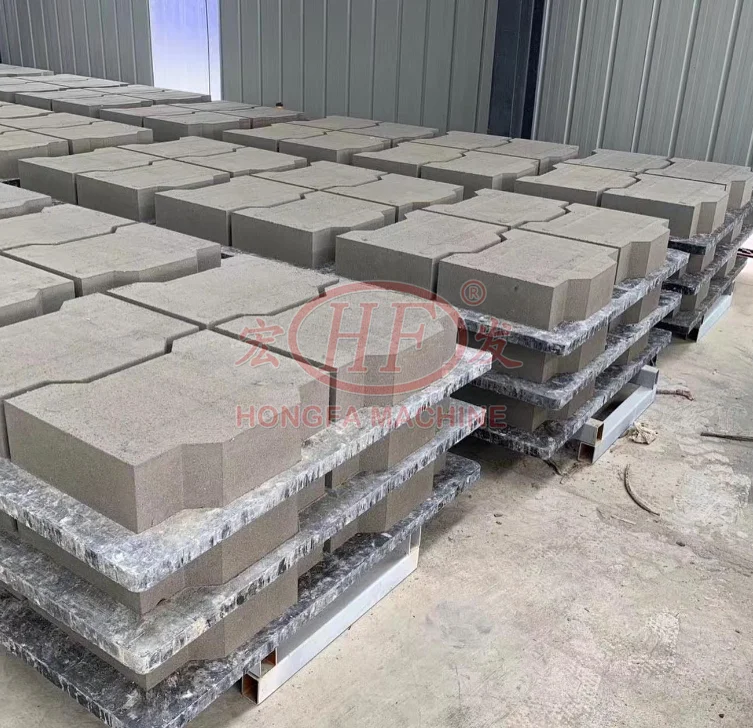

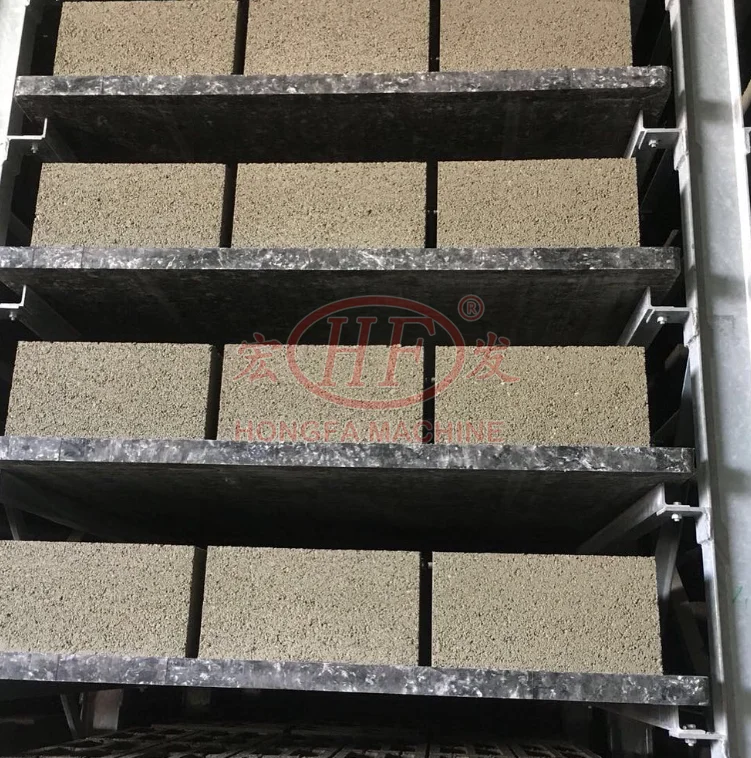

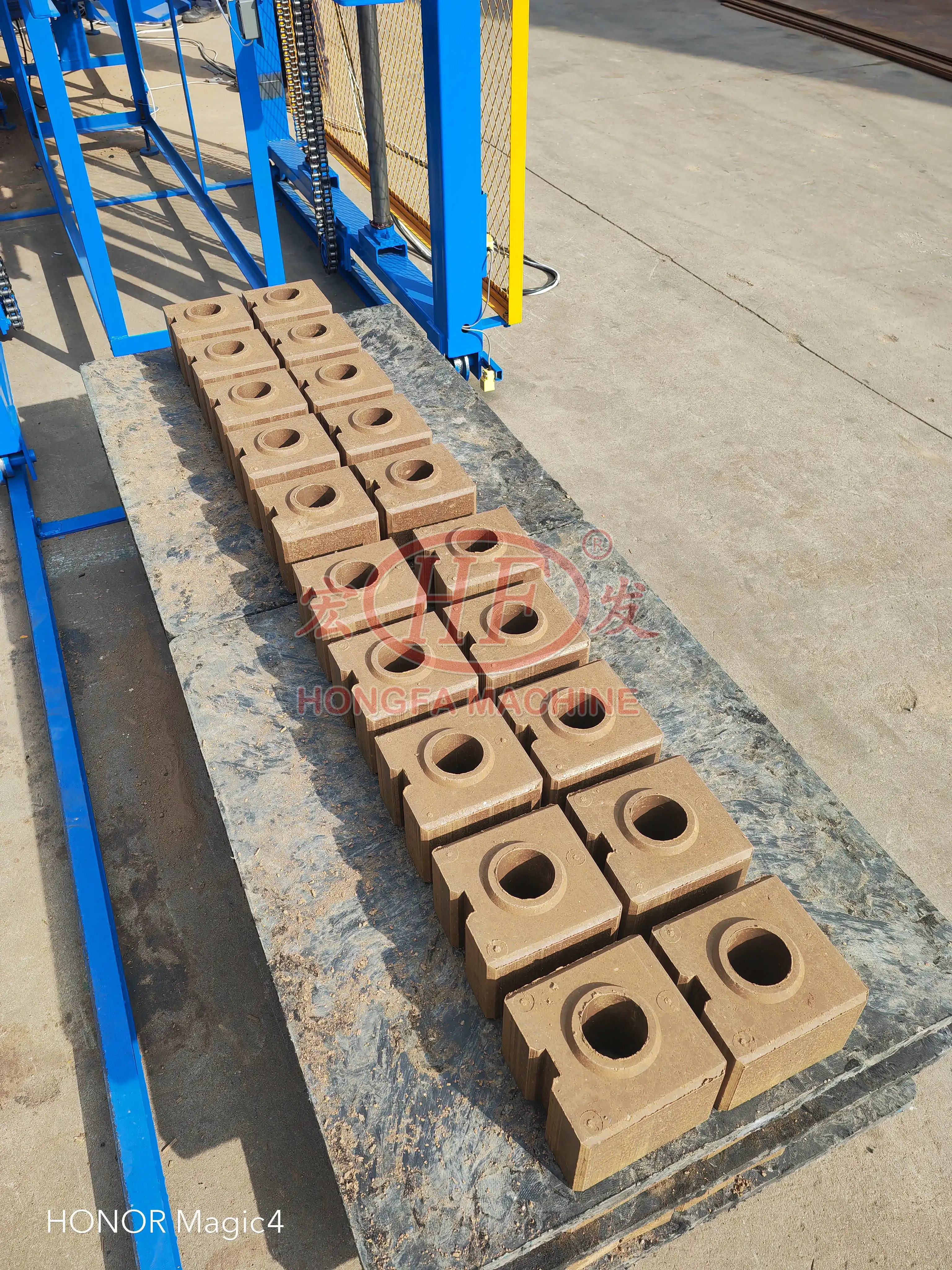

Block pallet is used as a base for concrete blocks, the concrete blocks are like eggs produced onto the brick pallet, so the brick pallet function is to hold the fresh concrete blocks, the blocks are made under big machine vibration and pressing, so the block pallet must be very strong and long lasting, so its raw materials is very important, under this situation, the GMT block pallet comes into the market.

Packaging & Shipping
Packaging & Shipping

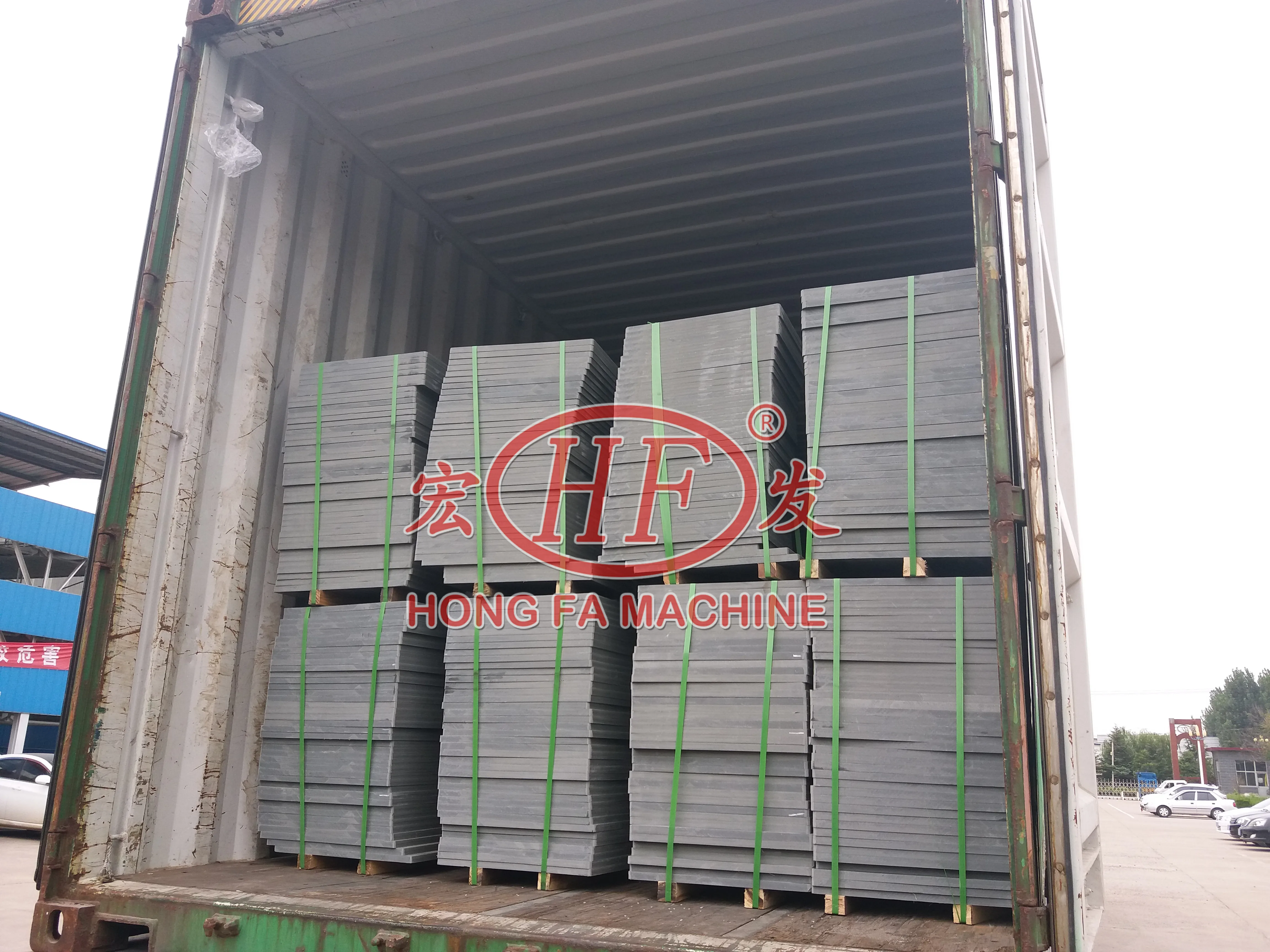

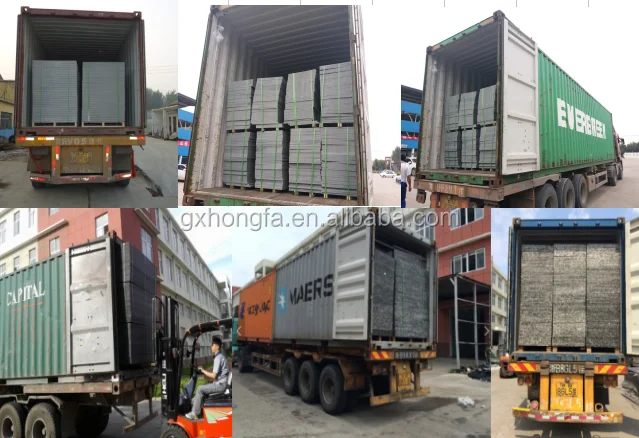

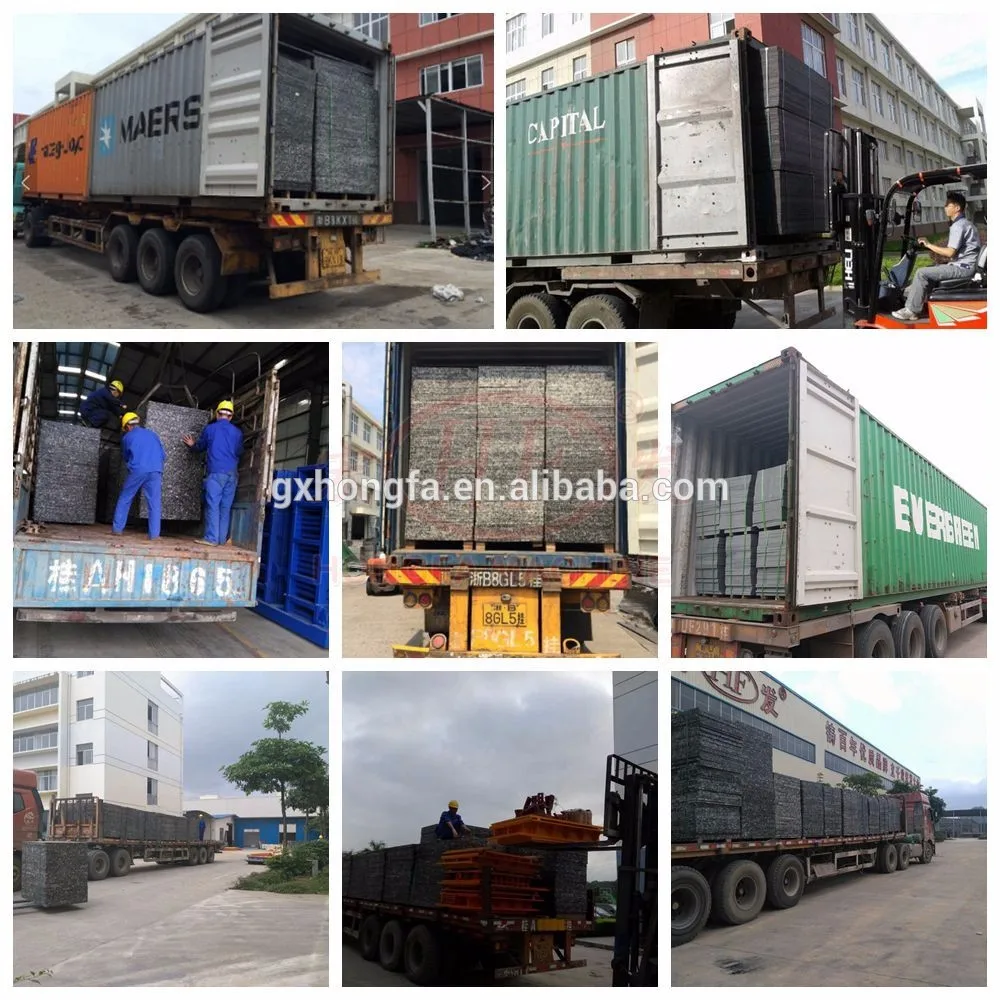

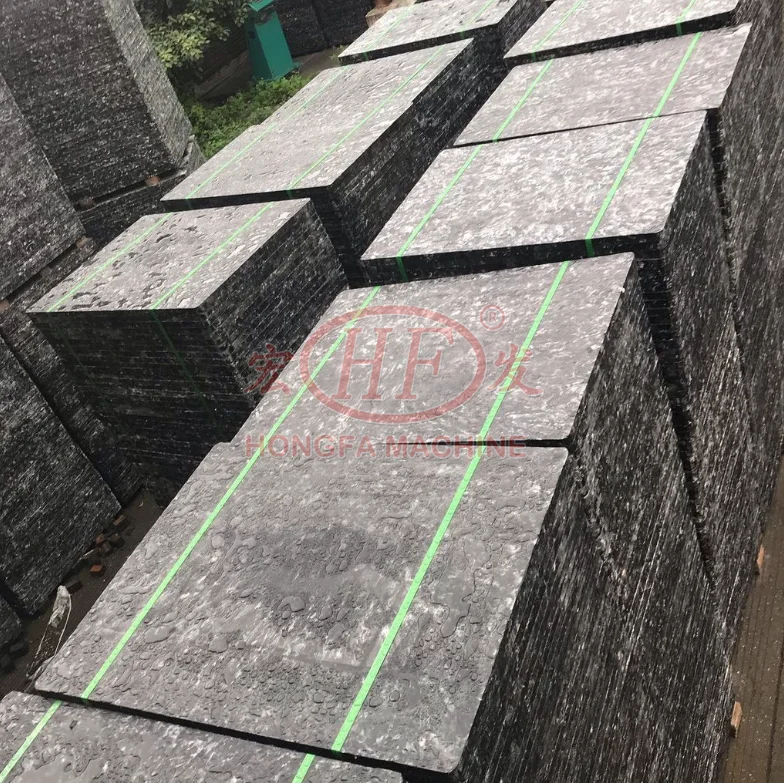

We wrap the PVC , GMT and Bamboo pallet with plastic film for about 50 pieces of pile, load one pile to a composite pallet, so that will be easy to use forklift to transport and load the pallet into the containers. good packing method.

Company Profile
Company Profile

Contact us
Contact Ms. Ivy Liu
Dept manager
Hongfa group since 1990
Email: ivy(at)gxhfmachine.com
WhatsApp: +86 18934977386
