Artificial Stone White Calacatta Quartz Slab Production Line Engineered Quartz Stone Slab Countertop Granite/marble Slab Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Artificial Stone White Calacatta Quartz Slab Production Line Engineered Quartz Stone Slab Countertop Granite/marble Slab Machine

Nhà cung cấp

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Thông tin nha cung cấp của bạn

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

Artificial Quartz Stone Slab Making Production LineArtificial Quartz Stone Slab Production Line Granite Marble nano glass slab pressing machine artificial quartz slab machineryartificial stone making machine artificial quartz slab for kitchen countertop tableAutomatic Quartz Stone Machinery Quartz Stone Pressing Machine Artificial Quartz Stone Slab Production Line In Saudi ArabiaArtificial Stone White Calacatta Quartz Slab Production Line Engineered Quartz Stone Slab Countertop Granite/marble slab machine

A synthetic Quartz SlabMaking MachineProduction Line consists of the following machines and equipment:

1,Mixer: for mixing the quartz stone,quartz powder,resin and additives.

2,Quartz plate pressing machine.

3,Oven: for curing the green artificial quartz plate slab to gain strength.

4,Cutting machine: cutting to desired specifications of the finished curing quartz plate board.

5,Calibration & Polishing System.

SPECIFICATIONS FOR HONGFA QUARTZ SLAB MAKING MACHINE
Product size	1900x3300mm MAX.	Slab type	Cabinet veneer, floor veneer, stair veneer etc.
Molding cycle	120S	Power	41KW
Capacity	90pcs/8 hours-1 shift	Dimension	5560 x 2680 x 2400 mm
Quantity/ mold	1 pc	Weight	19T
Relevant machinery: Mixer, mould(s), drying room, calibrating machine, grinding machine, cutting machine etc.

Materials of producing the Artificial quartz slab:

1,quartz stone

2,quartz powder

3,resin

4,titanium dioxide

Moreover, Glass also can be a very important raw materials for making the synthetic quarz slab, when producing the quartz slab, the mixing machine mix the colorful glass chips and quartz sand and powder, after pressing and polishing, the finishedquartz slab can achieve a beautiful surface. so we can see the colorful glass materials also important and useful for thequartz slab making machine.

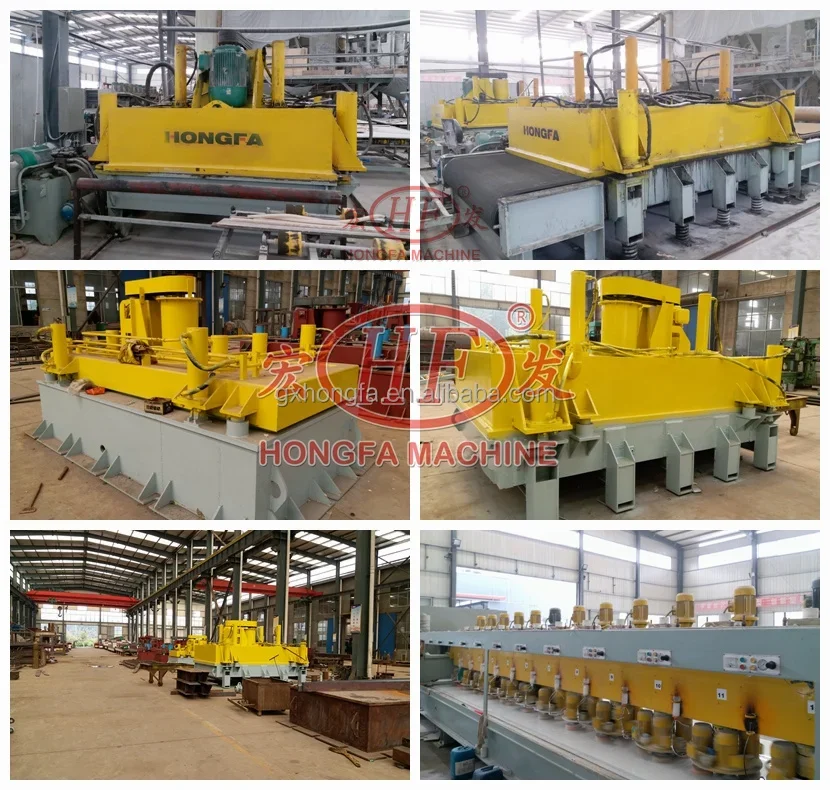

Machine parts

Name:LM series continuous automatic grinding machine.

Brand:Hongfa

Original:China

LM series continous automatic grinding machine is used in process of artificial quartz stone slab. There is 4 / 12 / 16 / 20 heads difference size machine, and there is 1m / 1.7m/ 1.9m most width grinding difference desinged. The max lift range of the machine head is 100mm, which allows 50mm thickness of plate at most. The machine have been optimized and upgraded on based on combining domestic and foreign advanced technology, which enhances its lading position in the field.

Name:LX series continuous automatic thickness calibrating machine Brand:Hongfa Original:China LX thickiness calibrating machine is designed for the process fo calibrate thickness before polishing artificial quartz stone. There are three size- 4 ends, 6 ends, 8 ends. It can process three width type quartz stone: 1m, 1.7m, 1.9m. Range of vertical stroke of the cutter is 60mm, the max thickness of precessable artificial quartz stone is 50mm.
	Name:LY Vacuum vibration pressing machine Brand:Hongfa Original:China LY series vacuum vibration pressing machine is used to press bulk material into blank plate, which contains machine frame, vacuum box, vibration motor, lifting oil cylinder, pressurized cylinder, transmission parts, vacuum parts, hydraulic electric control etc. Compare with external type compressor, it has advantages such as low power consumption, light weight, low cost etc..
Name:LQ Cutting machine Brand:Hongfa Original:China LQ series cuting machine is used in vertical and holizontal cutting for the plate of quartz stone. It can make the plate pass continuously on the production line and cut down turnover of the plate. There are 4 blade and 5 blade two types according to the different thickness of plate, the plate can be cut to two part. The biggest plate can be cut into 3 sizes, 2500mm, 3100mm, 3300mm and so on, reliable guide rail and spindle structure make sure the incision straigtness, automatic control operational process, computer show data, the length and width can be adjusted within certain limits.
