Products Description

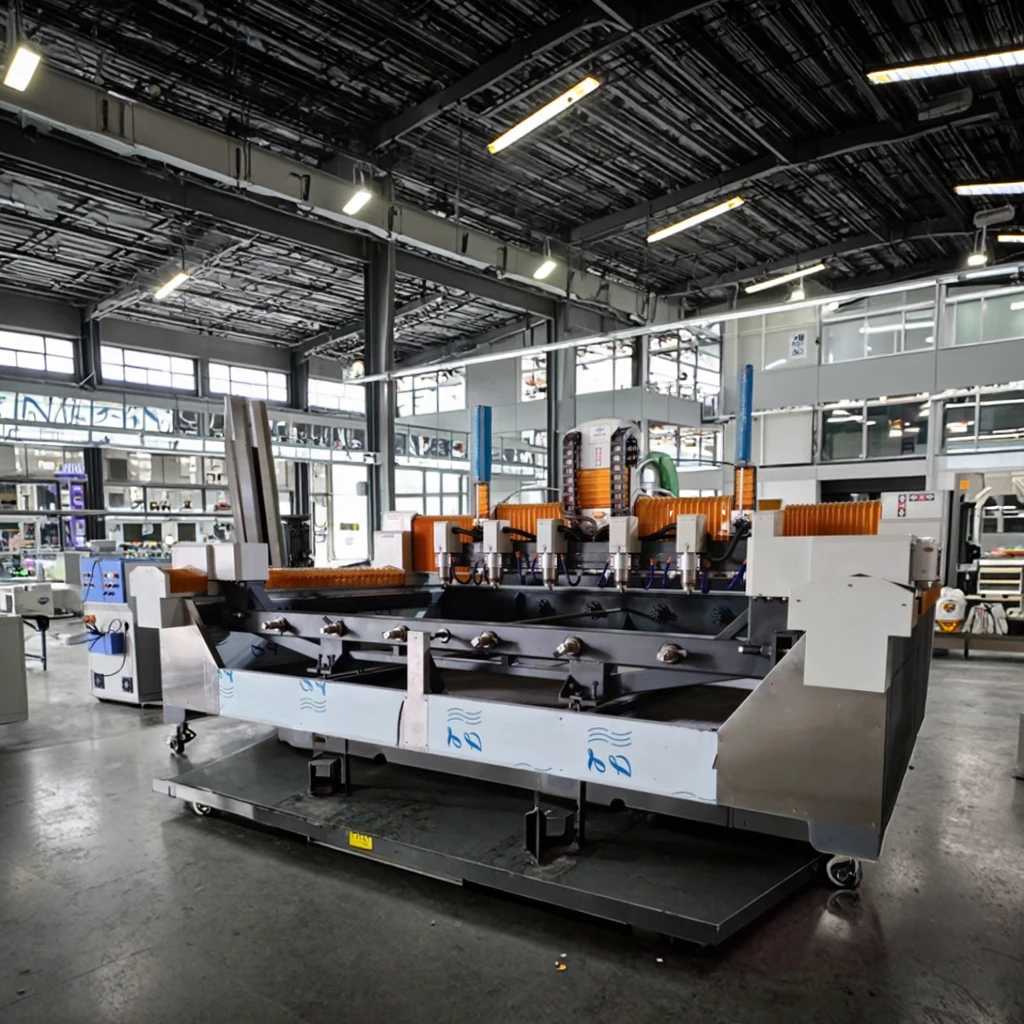

Infrared Automatic Mono Bridge Tile Cutter Stone Cutting Machine Stone Cnc Tables Granites

CNC Stone Carving Machine equipped with NCstudio CNC control system, is a reliable and versatile machine for engraving, drilling, lettering, cutting all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass. It's also workable for die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC , etc.

Main Features

1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate. 2) Break to rusume function. Continue carving from break point after power resuming from failure. 3) Compatible with Artcam JD Paint CAM software and other software programs. 4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy.. 5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption. 6) Aircraft-quality surface oxidized aluminum profile table which adding thicken PVC board, Enhancing the loading capacity of the platform. 7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.

TECHNICAL DATA
Model No.	JK1512	JK1525	JK-1825	JK-1325
Workbench dimension	150*120cm	150*250cm	180*250cm	130*250cm
Number of working head	1 pcs(customizable)
Gantry height	410 mm
Feeding height	≤ 360 mm(customizable)
Spindle power	3.7 /4.5 / 5.5 (customizable)
Spindle rotating speed	6000-24000 rpm/min
Max. moving speed	30000 mm/min
Diameter of engraving tool	ø1-16 mm
Positioning precision	+/- 0.03 mm
Repeat positioning accuracy	+/- 0.02 mm
Command code	G code
Driving system	Step / Hybrid servo / Servo (customiable)
Cooling system	Water cooling
Gross power	12
Gross weight	1760 kgs
Dimensions (L x W x H)	270x225x200cm	350x225x200cm	350x255x200cm	230x325x200cm

Machines with different quantity head are customizable

Stone CNC Machine
3D CNC Router	Rotary CNC Router
CNC Machining Center	Stone Carving Machine
Multi-head CNC Router	Wire Saw Machine
Stone Cutting Bridge Saw	*More>>*

We are specialized in the production of stone engraving machine factory !

Any customization needs, Please contact me!

Application

* Bas-reliefs, * Line engraving Cutting, Edge inversing * Funeral tablets/gravestones, Milestones * commemorative plates * Furniture, Fireplace. * Countertops, Sink hole, grooving, shower trays

Details Images

Control system -- CNC

Brand: NCStudio Original: China NCstudio CNC system, large screen display, easier to operate and maintain, more humanized design

Water-cooling Spindle

Power: 3.5/4.5/5.5 (customizable)
Rotating Speed: 6000-24000 rpm/min

Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed
and safeguard stability for longtime work.

Guide Rail, Ball screw

Origin: Taiwan, China

High quality guide rail, ballscrew, rack used on X, Y and Z axises provide smooth motion and tight control for precise and quality
engraving.

DSP A11 Control This machine adopts a DSP A11 controlsystem, which is more convenient and easy to operate.

Electronic Components Using the standard components with CE cetification, such as Germany Schneider company.

Product packaging

Company Profile

Jiahe CNC Router (Shandong) Co., Ltd. is a professional CNC machines manufacturer dedicated to the development and research of CNC stone router, CNC metal engraving machines, CNC wood router, and laser machines. Professional design solutions meet various of customized needs from customers, and are committed to the research and development, production and sales of high-end stone CNC router, four-axis and five-axis stone engraving machines.

The professionally matched design solution achieves a perfect combination of performance, precision and appearance, and various types and specifications of equipment can meet the needs of different customers. Through computer control and software and hardware system integration, the CNC machines developed and produced by our company are widely used in stone art processing, three-dimensional animals and three-dimensional Buddha statues, jade processing, large-scale casting, mold modeling, glass carving, metal processing, plasma cutting, Copper and aluminum mold manufacturing, ceramic tile carving, real estate model, packaging and printing industry, computer graphics, handicraft production, furniture stamping, interior decoration, wave plate processing, seal, sign nameplate production, clothing, leather, embroidery, advertising art, plastic processing , Wood processing, and other industries.

Our company's equipment strictly implements ISO9001 quality management system certification and European CE certification standards. We have exported our machines to many countries, for example, USA, Peru, Mexico, Canada, India, Thailand, Vietnam, Korea, Japan, Indonesia, Pakistan, Bangladesh, Greece, Romania, Spain, Saudi Arabia, Jordan, Israel, Russia, Nigeria, Cameroon, etc. Our good quality machines and perfect after-sales service have gotten the positive feedback and support from customers.

FAQ

Q1: How do I get the best price? A: As you may know,the different type of CNC machine apply to the different pricre. Q2: What machine suits me best? A: Different material and the different model apply to the different machine. Please tell us what’s material you want to cutting or engraving ? And what’s MAX size of carved material ? Then we will recommend the most suitable model and the best price for you. Q3: In of failure,how to do? A: Call us----our enginers are online for 24-hours,and ready to serve you. Replacement of damaged parts for free---For more information,please contact us The CD and operation manual----It show the most common failure in working processing and how to solve this problems. Q4: Are you trading company or manufacturer ? A: We are factory. Q5: How long is your delivery time? A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.
