PRODUCT DISPLAY

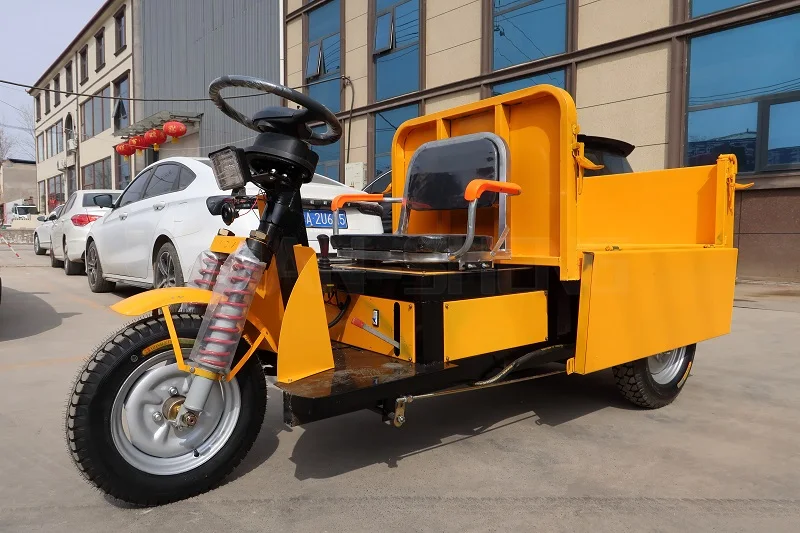

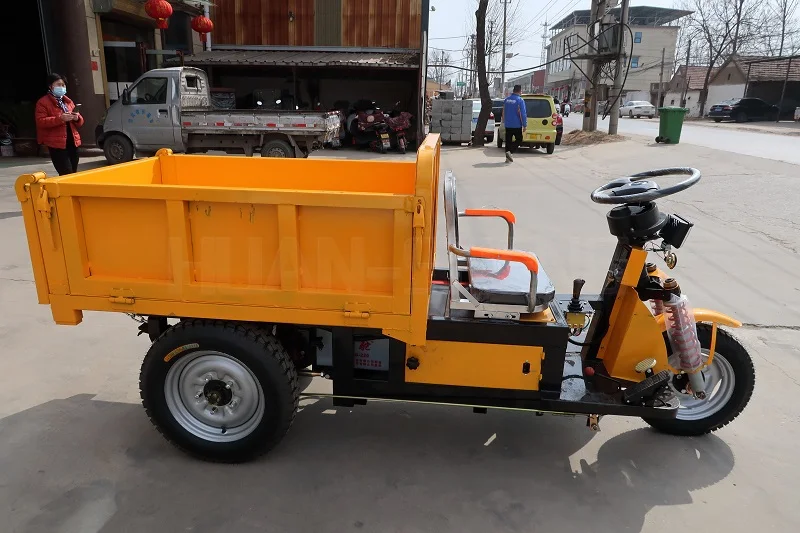

1.5 Ton Three-Door Electric Dump Tricycle

With a load capacity of 1.5 tons, it can meet certain cargo transportation needs of small construction sites, farms, factories and other places, such as transporting construction materials, feed, fertilizer, garbage, etc. Its compact size allows it to travel freely in narrow streets, mines, warehouses, construction site passages and other places. Equipped with a self-unloading device, it is easy to operate and can unload goods quickly and labor-savingly, greatly improving loading and unloading efficiency. With electricity as the power source, it is energy-saving and environmentally friendly, with no exhaust emissions. At the same time, the noise of electric drive is relatively small. The three-door design makes it very convenient to load and unload goods.

Product Parameters

Model	HS155	Weight	650kg
Key words	Three door design	Voltage	60V/72V
Application	Mining Used, Construction Works	Lifting motor power	1000w
Capacity	1500KG	Driving motor power	3000w
Overall Sizes	27009001200mm	Battery model	185
Cargo Box Sizes	1500900500mm	Work platform Height	700mm
Front tire model	450-12	maximum tilt angle of car bucket	45 degrees
Rear tire model	500-14	Speed	15-25km/h
Charging time	First is 12 h, normal 6h to 8h	Color	User Requirements

Specific Details

Hydraulic lifting system

The picture shows the hydraulic cylinder, hydraulic oil tank, lifting motor and hydraulic control lever. By turning the hydraulic control lever, the hydraulic cylinder is controlled to raise or lower the truck bed. The maximum lifting angle is 45°

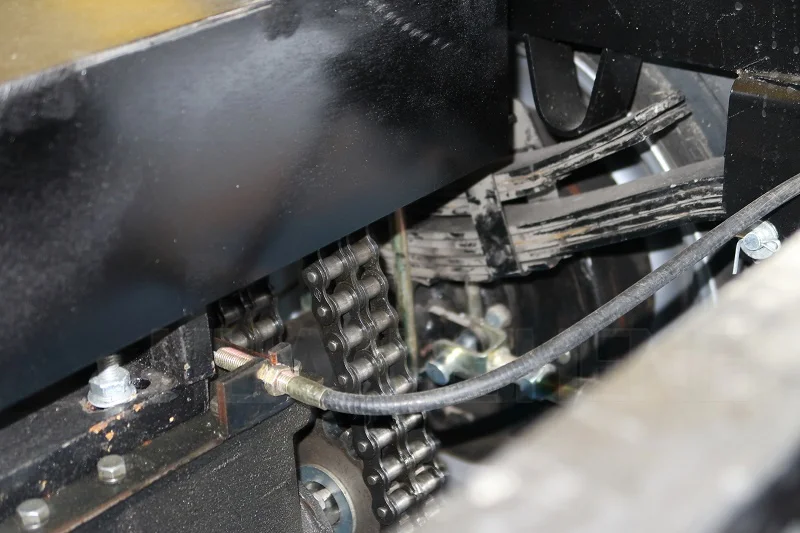

Double-Chain Rear Axle

The double-chain rear axle has stable power transmission, strong load-bearing capacity, high transmission efficiency and high reliability.

Protection cover

The protective cover can block sunlight, reduce the temperature inside the car, slow down the aging of vehicle components, protect battery performance.

Battery

The HS-155 1.5-ton electric dump truck is equipped with the 12V high-performance dry battery, which is maintenance-free and more convenient. It can achieve continuous discharge for 10-12 hours after a single charge, and the battery capacity will not decrease after two years of normal use.

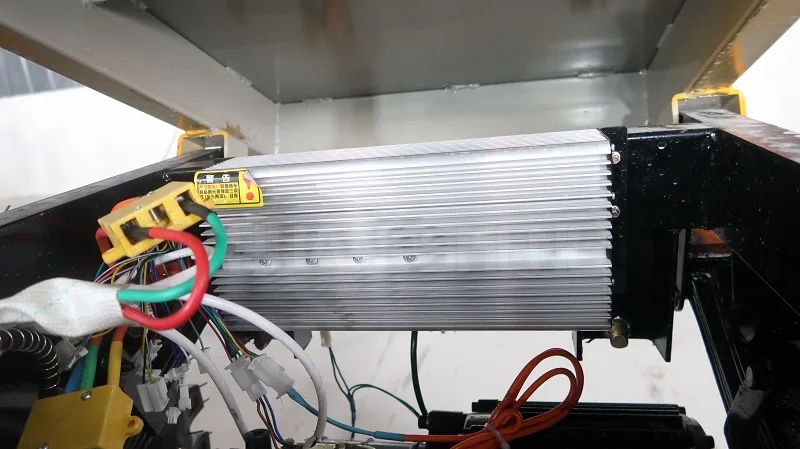

Controllers, accelerator pedal and brake

Receive signals from various sensors and operating components of the dumper, such as accelerator pedal signals, brake signals, gear signals, etc., sending signal to the motor to accurately control the operation of the dumper.

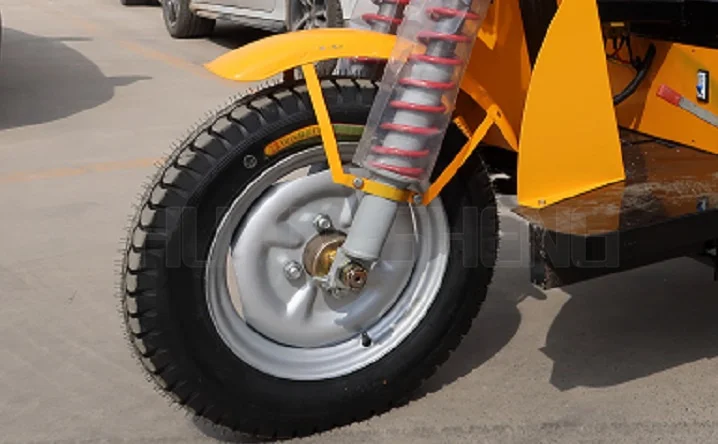

Tire（Chaoyang brand）

--Good safety performance --Good fuel-saving performance --Excellent quiet effect

The unique pattern design and tread material provide excellent grip, ensuring the stability and control ability of the dumper on both dry and wet roads, reducing driving risks.

Front tire model:450-12;Rear tire model:500-14

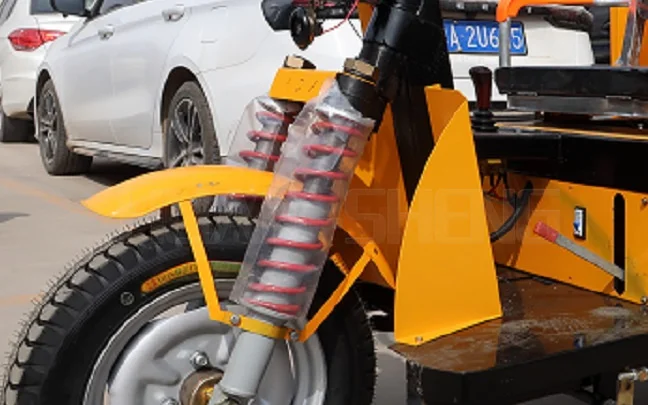

Shock Absorption System

It adopts spring shock absorption and thirteen spring steel plates, which form an elastic connection with the frame, thereby reducing the discomfort caused by uneven road surface when the dumper is driving, ensuring the normal driving of the dumper and maintaining a certain stability and comfort.

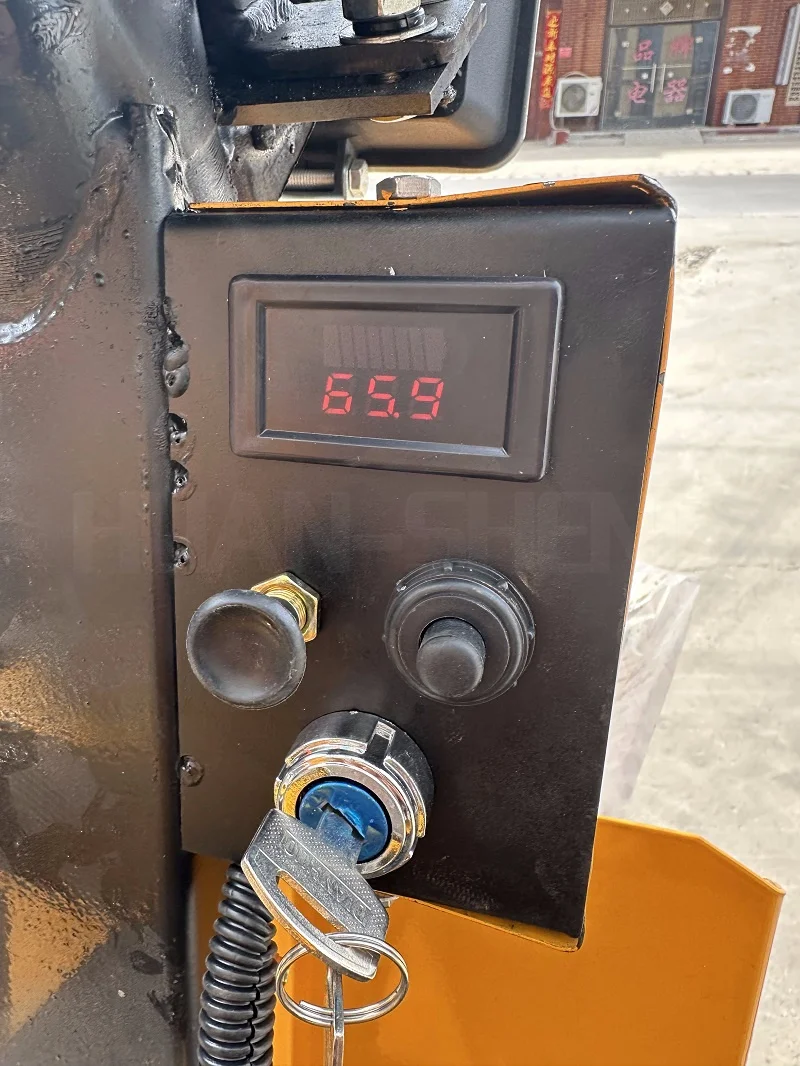

Ammeter

The power display instrument can clearly check the remaining power, charge the dump truck in time to avoid running out of power during driving.

LED light

Using 15-hole LED lights, it can illuminate the road ahead and see the road conditions ahead clearly even in dark mines.

Recommend Products

About HuanSheng

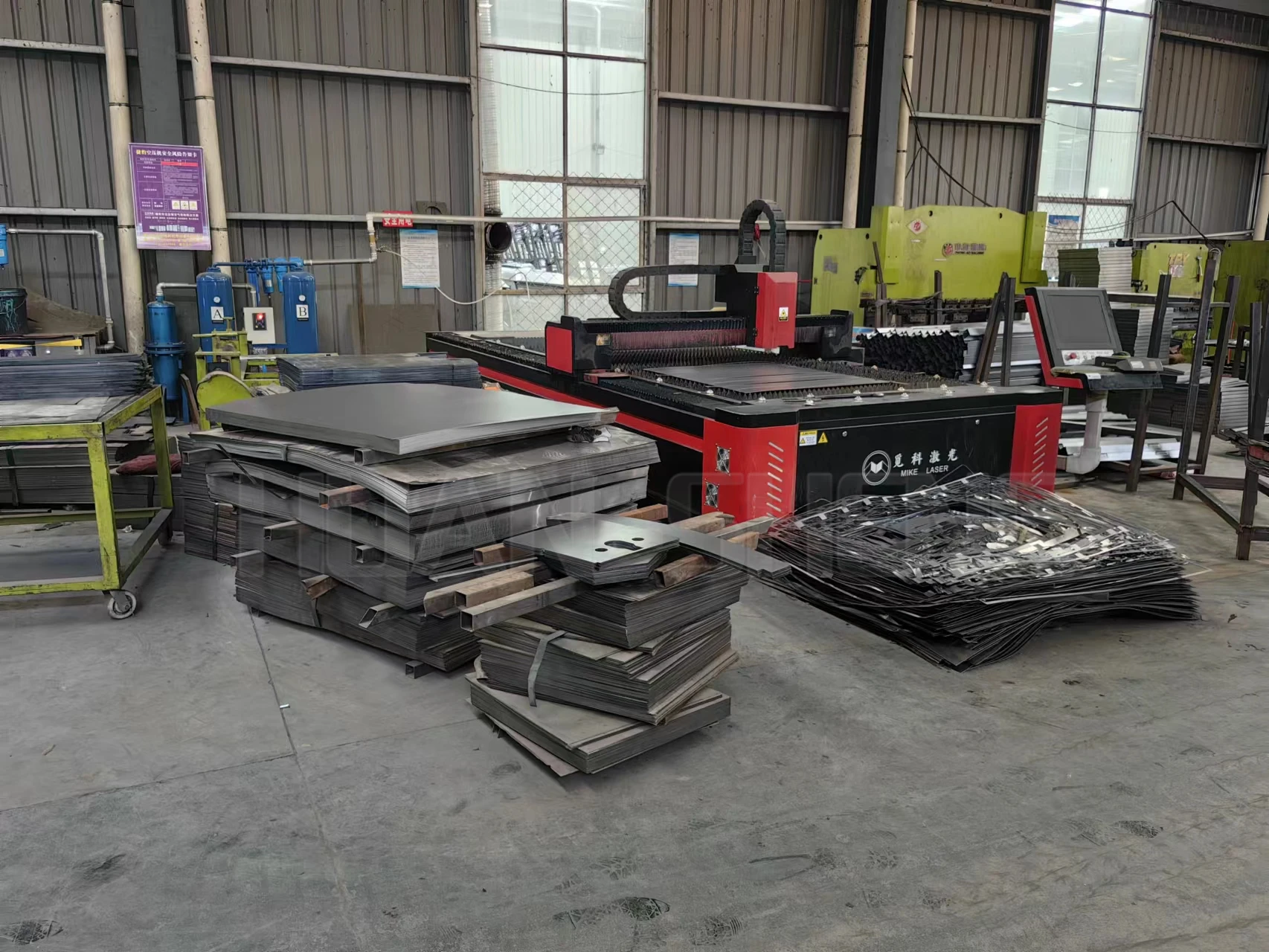

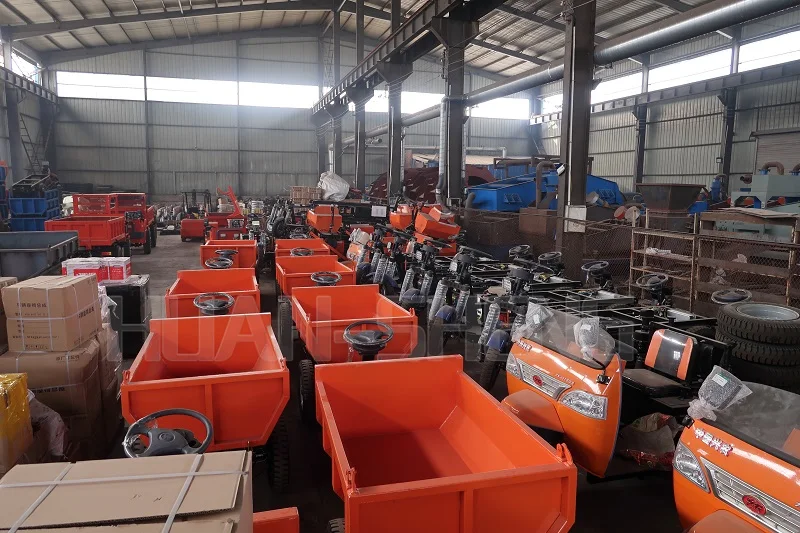

Henan Huansheng Mechanical Equipment Co., Ltd. is a professional mining machinery manufacturer with over 20 years of experience in mining machinery production, have a professional production and research and development team.Our factory covers an area of over 5000 square meters, with over 30 employees and an annual production capacity of 5000 units per set. We have achieved scientific standardization in production and management, and passed the ISO9001 international quality management system certification in 2006.

Packing and Delivery

Packing: Wooden box(4 or less); 20GP / 40HQ(more than 4).
At the same time, we support LCL and FCL, which can fully meet the needs of customers.

FAQ

Q: Do you have any room for discounts on your prices?

A: Of course, the more you purchase, the greater our discount will be. You can contact us for more details.

Q: How long after payment can the shipment be made?

A: We usually produce and ship within 15 days after signing the contract, but the quantity may vary depending on the purchase.Of course, this will also change according to your needs.

Q: Do you have your own factory?

A: Yes. Our factory covers an area of over 5000 square meters, with more than 30 employees and an annual production capacity of 5000 units per set. We have achieved scientific standardization in production and management, and passed the ISO9001 international quality management system certification in 2006.

Q: How are your products packaged?

A: 1-4 units we usually use wooden box,20-foot container can hold 10-12 units,40-foot container can hold 24 units.

Q: What’s your payment method?

A: We usually arrange production according to 30% of the total order amount, TT pays the advance payment and arranges the production, and pays the remaining 70% before shipment.
