Pipe Lining Machine Concrete Making Machinery Concrete Pipe Vibration Concrete Machine

(10 Lượt)

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Nhà sản xuất, chế tạo • 2 năm •

Giá

250,000,000 đ

Giá sỉ

0986xxxxxx

Giá số lượng lớn

0986xxxxxx

Pipe Lining Machine Concrete Making Machinery Concrete Pipe Vibration Concrete Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Pipe Lining Machine Concrete Making Machinery Concrete Pipe Vibration Concrete Machine

Nhà cung cấp

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

Thông tin nha cung cấp của bạn

Công ty TNHH Máy móc hạng nặng Quảng Tây Hongfa

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

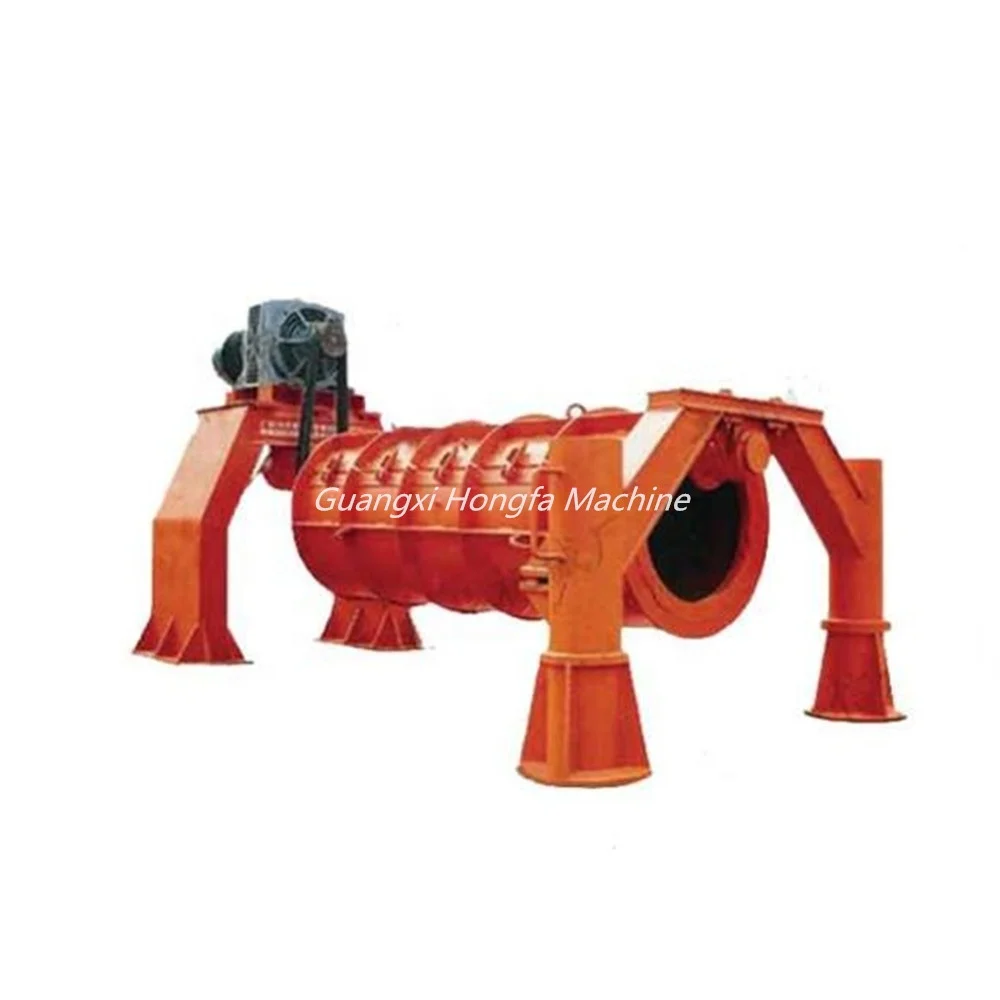

Product Overview

Brief introduction of our Cement Concrete Pipe Making Machinery:

1.HF series Horizontal Type Concrete Pipe Making Machines are used to produce concrete pipes with diameters of 200-2500mm and
lenth of 1000-2500mm.
2.The machine uses rolling axis to support the pipe mould and to press the congrete inside the mould when it is rolling.
3.The Machine makes full use of the rolling force and centrifugal force high quality and solid concrete pipes.

Main Parts of Production Line

Character

1. Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 3-5 minutes with
high speed roller rotation.

2 .This pipe machine uses the dry cast material, there will no waste cement mud, then it won't pollute the environment.

3. During the production, the noise is low, it is about 80-90 DB.

4. The concrete pipes are with high pressure load and with high production efficiency.

The Main Production Specification of Our Pipe Making Machine

The Main Production Specification of Our Pipe Making Machine
Overall Dimension			1840×1700×4000 mm
Reducer rate			1:5.8
Mould length			800mm
Cycle Time			Moulding cycle: 5-10min(depends on the dimenstion)
Whole power			11.75kw
Motor Power			7.5kw
Mould diameter (inside mm):			200mm, 300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 1000mm
Wall Thickness			30mm for dia 200mm,300mm, 40mm for dia 400mm, 50mm for dia 500mm, 60mm for dia 600mm , 70mm for dia 700 ,80mm for dia 800mm, 100mm for dia 1000mm
Speed of main shaft			45 rolls / min
Productivity			30~100pcs / 8h(can change moulds)

Certifications

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Packing and Shipping

Packing: Naked packing or stretch film packing or according to customers' requirements
Delivery time: Within 30 days after receipt of deposit and moulds confirmation from buyer of board making machinery

Company Introduction

Hongfa Heavy Machinery Since 1990

1) More than 34 years experience. 1500 employee (50+engineers)
2) Total 4 factories with 440,000M² and annual sell above USD100 Million .
3) 10,000 customers and fulfillment to over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.We hope we can cooperate with each other and establish a win-win business relationship.

Hongfa Machinery's Honor
⭐One of Top Ten Influential Brands in China Brick &Tile Industry
⭐China National Enterprise Abiding By contract & Keeping Good Faith
⭐Quality and Credibility of the Dual-protection Demonstration Unit
⭐High and New Technology Enterprise
⭐Famous Trademark of China
⭐Star Enterprise with China Patent
⭐AAA Grade Credit Enterprise
⭐Consumer Satisfaction Unit
⭐One of Top 100 building Material Industry Brands of China
⭐One of Top Ten Good Faith Units
⭐Advanced Exporter in Guangxi Province
⭐Advance Quality Management Unit

Our Services & Strength
Pre-sales service
We can design molding machine and aluminium mold according to your ideas before you make final decision, we are glad to add value to help you find best way make your ideal panels.

After-sales service
5 years after sales guarantee, 1 set of free spare parts available, free installation, free labor training, free formula testing
and lifespan technical maintenance guidance.

Warm welcome to visit our factory!

FQA

Q: What is the MOQ?
A: 1 sets.
Q: Can I mix different designs?
A: Sure!
Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
Q: Can I add or delete items from my order if I change my mind?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change
Q: When you ship my order?
A: Normally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the quality guarantee period?
A: 1 year after shipment arrives.
Q: How can you guarantee the production quality?
A: Our production quality follow China construction machinery standard JGJ33-2012. We have 34 years experience on producing the machines and will be inspected by QC team for ach shipment. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
