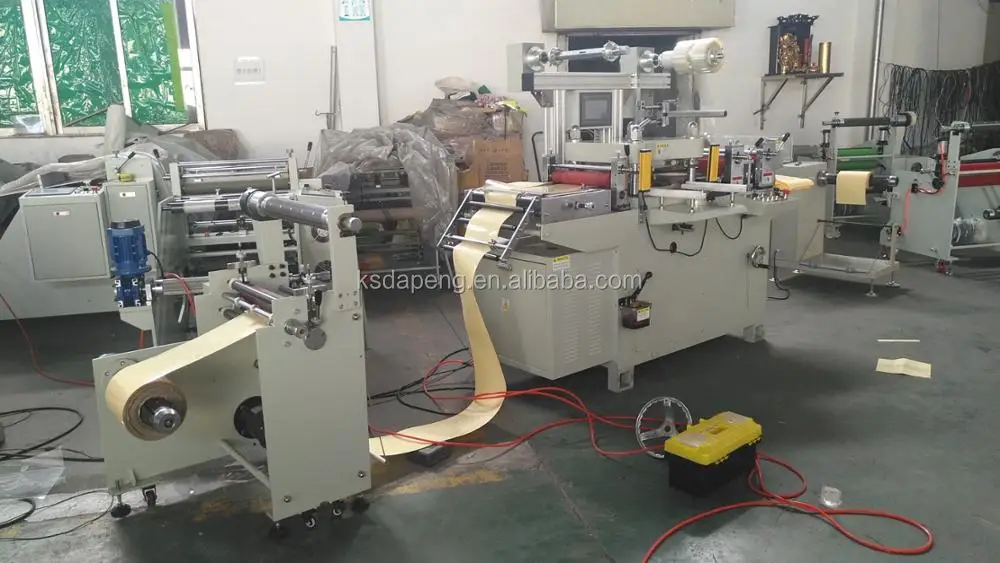

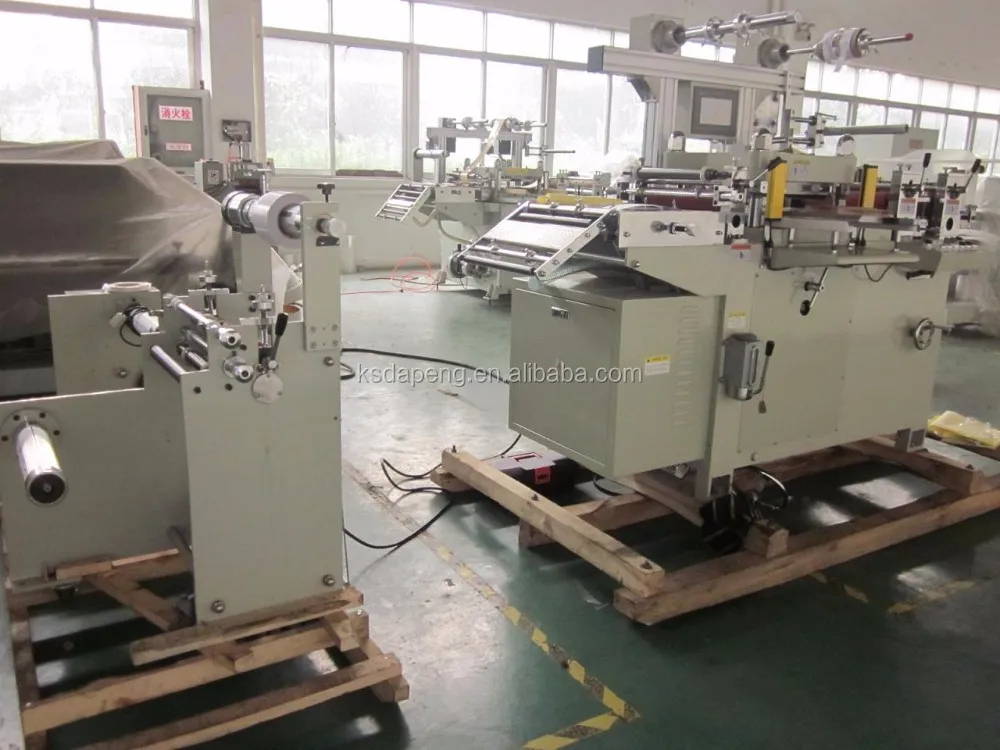

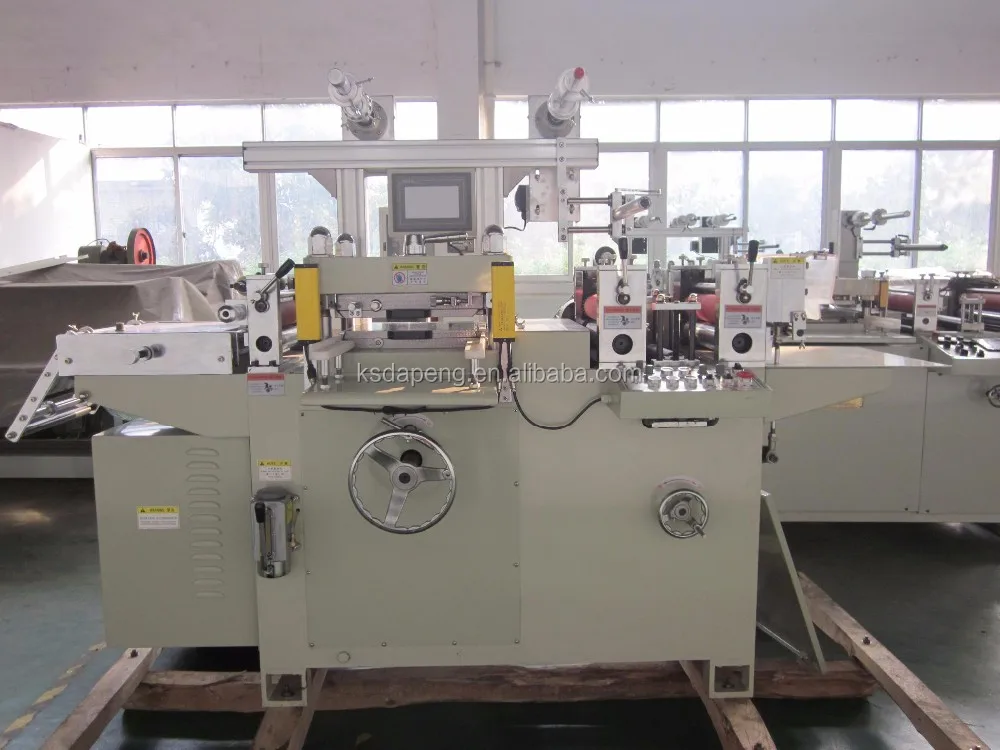

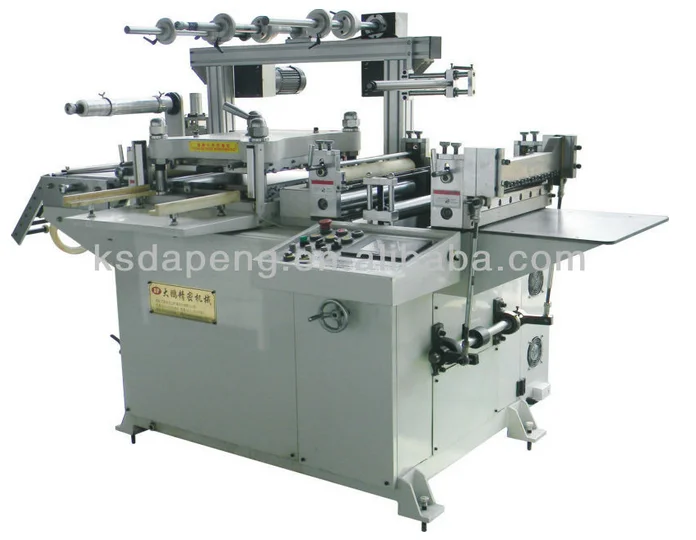

Automatic Feeding Film Paper Roll Die Cutting Punching Machine Price
Functional characteristics:
This machine is suitable for all kinds of roll material die cutting.It with independent unwinding machine and rewinding machine.With automatic computer control and servo motor control, servo motor pulling and pushing material, more precise of unwinding.It with touch screen operation to set the die cutting datas ,and with hand operation switches also , easy operation.The soft rubber roller and polished aluminum guiding roller not scratch the materials .
Standard function:
Unwinding ------ air suction -------- die cutting (kiss cut )---- waste scrap rewind ---------- roll rewind or sheet cut

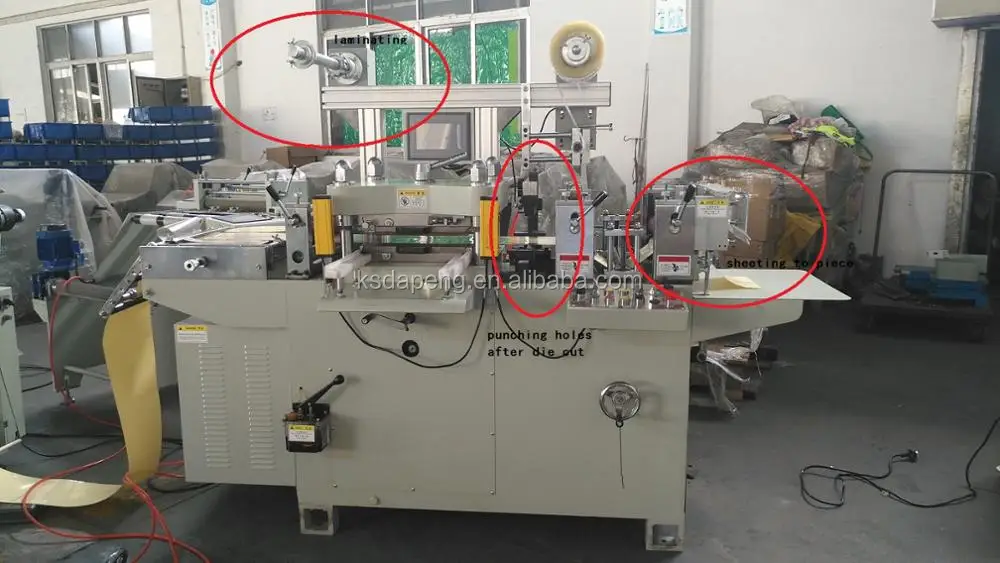

Optional functions:
1. Hot stamping
2. Punching
3. Laminating
4. Adding conveyor belt
5. Full-cut for die cutting
Scope applicable:
On a variety of electronic appliances special pads, silicone paste, hook and loop, conductive plastic, strong double-sided adhesive, 3M,
Sony special stickers, backlit screen, and other electronics industry, IT industry membrane switch,
Automotive manufacturing used in the stickers products. aluminum foil, copper foil, PVC, PET, kraft paper, sponge jacket, pearl sheathed etc
Main Parameters:
| Model | DP-320B | DP-420B |
| Max Feeding Width ( mm ) | 320 | 420 |
| Cutting Area ( mm ) | 320*300 | 420*400 |
| Cutting Speed ( T/M) | 30-170 | 30-170 |
| Position Accuracy ( mm ) | ±0.1 | ±0.1 |
| Power of Main Engine ( kw ) | 2.2 | 3 |
| Size ( mm ) | 2300*1250*1500 | 2400*1290*1610 |
| Voltage (V ) | 380 | 380 |
Other more function can be get as below:
