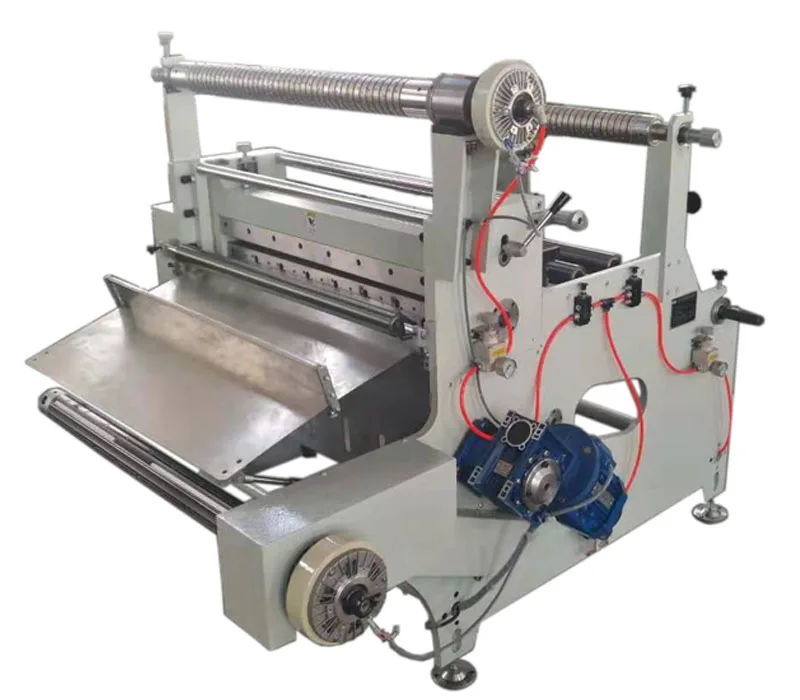

PVC vinyl polyester film roll to sheet cutting machine with laminating function
Functional Characteristics:
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity,speed and finish singleness cutting , equipped with automatic unwinding system and air shaft,which will be easy to load and unload
One rewind liner slip shaft and one upper unwind slip shaft,The distance between two slip ring is 20mm on this two slip shaft.
Purpose:
It is applicable for the cutting of Paper,aluminum foil,copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil, PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting electronic materials.
Technical Data:
Model | DP-800 |
Max Feeding Width ( mm ) | 800 |
Unwinding PET film diameter | 600 |
Upper Unwinding diameter | 400mm |
Rewind liner diameter | 400mm |
Finished product rewind diameter | 400mm |
| Main engineer power ( kw ) | 1.1 |
| Shaft diameter | 3 inch |
Voltage | 380V 50HZ |
Unwinding shaft | 2 pcs |
| Rewinding shaft | 2 pcs |
| Laminating roller | 2 pcs |
Configuration list:
| Touch Screen | KUNLUNTONGTAI | Made in China |
| Programmable Controller | Mitsubishi | Made in Japan |
| Servo Driver | DELTA | TAIWAN,CHINA |
| Servo Motor | DELTA | TAIWAN,CHINA |
| Motor of cutting knife | SHENLI | Made in China |
| AC Contactor | CHNT | Made in China |
| Solid State Relay 20A | GOLD ELECTRICAL CONTROL | Made in China |
