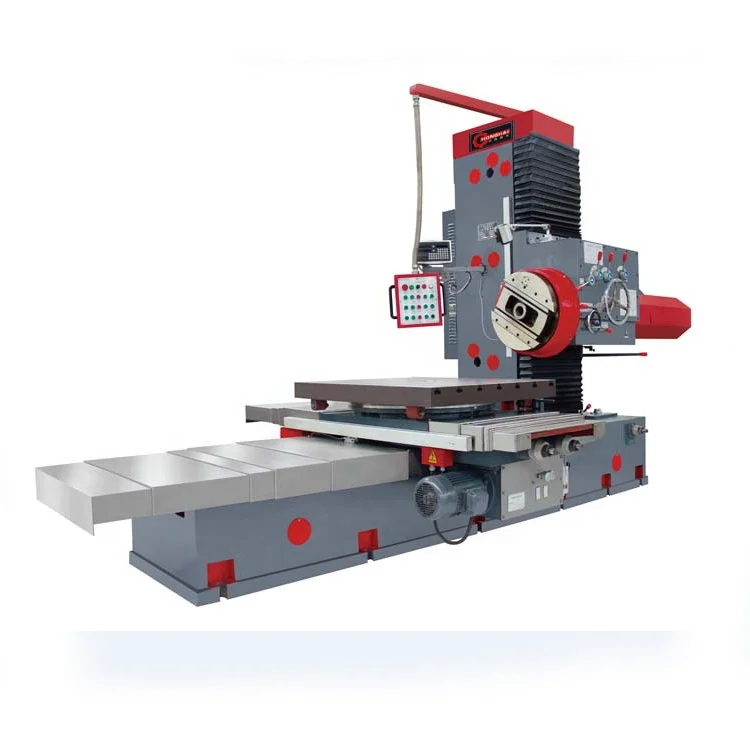

China Brand Best Selling Horizontal Boring Machine

(19 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm •

China Brand Best Selling Horizontal Boring Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

China Brand Best Selling Horizontal Boring Machine

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

Products Description

Brief Introduction

This series the machine has the following advantages: The main movement, machine tool in the movement speed is using hydraulic primary focus manipulation, save the assistant time, improve efficiency. In the process of variable speed, the indicator button can be signal.

Characteristic

The machine moving parts-spindle box, the vertical and horizontal and rotating the distribution of the movement and the moving parts of clamping, loosen all use-hydraulic automatic interlock, a high degree of automation.

High position accuarcy:most suitable for machining parts such as dies,drilling or boring jigs and fixtures

Standard accessories	Optional Accessories
Tool bar	Milling toolholder for facing head
Ditto	Change gear
Milling tool bar	Boring tool
Short handle	Versatile boring toolholder
Wedge bolck	Boring toolholder for facing head
Long handle	Short toolholder for facing head
Tool holder for facing head	Long toolhoder for facing head
Boring bar bearing	Bend Plated
Precise hexagon nut	Step-type Press Plate
Foundation bolt
Finishing washer
Hand driven grease gun

Specification

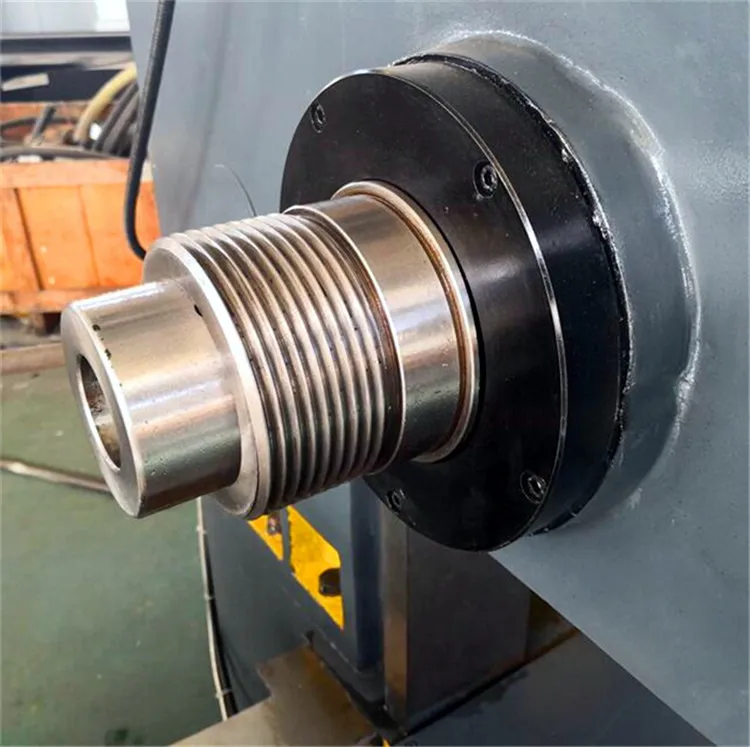

Spindle diameter	110
Spindle taper	-
Max.spindle torque	1225
Max.spindle thrust	12250
Number of spindle speed	22
Range of spindle speed	8-1000
Power of main motor	7.5
Max.facing head torque	1960
Facing head diameter	600
Range of facing head speed	4-200
Number of facing head speed	18

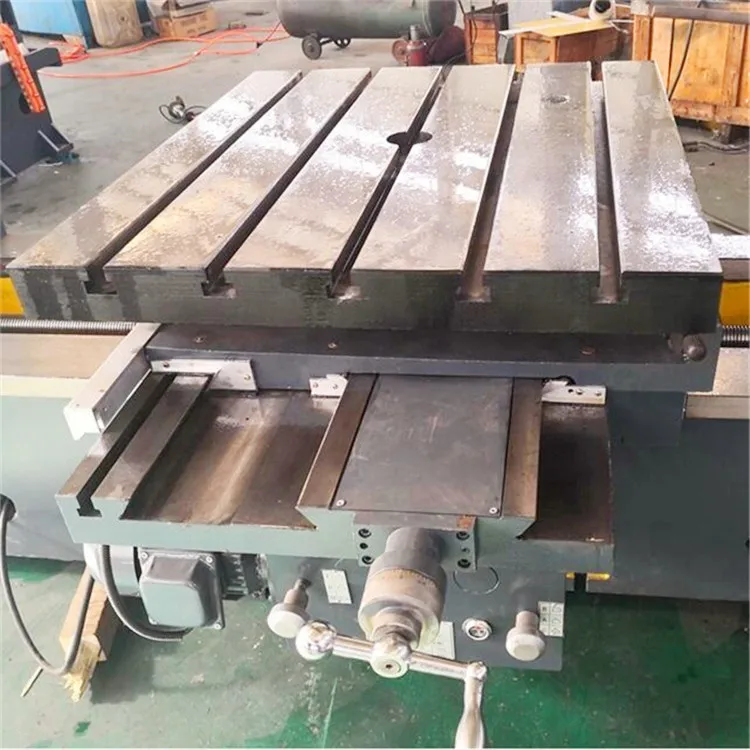

Table working surface (LxW)	1100x960
Max.permissible load on table	2500
T-slot	22
Number of T-slot	-
X-axis travel	900
Y-axis travel	900
Z-axis trave	1400
W-axis travel (Spindle travel)	600
B-axis worktable rotary	360
Min.distance between spindle axis and table surface	0
Rapid travel (X/Y/Z/W)	2500
Range of axes speed per spindle revolution (X/Y/Z/W)	0.04-6 / 0.01-1.88
Feed range (X/Y/Z/W)	-
Measurement system reading precision (X/Y/Z) (Z-axis measurement optional)	0.005
B-axis measurement system reading precision (B-axis measurement optional)	0.001
Overall dimensions (LxWxH)	491x245x275
Weight of machine	13000
