Automatic Pvc Bopp Paper Roll Slitting Machine Nonwoven Pe Plastic Film Thermal Paper Slitting Machine

(16 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm •

Giá

150,000,000 đ

Giá sỉ

0986xxxxxx

Giá số lượng lớn

0986xxxxxx

Automatic Pvc Bopp Paper Roll Slitting Machine Nonwoven Pe Plastic Film Thermal Paper Slitting Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Automatic Pvc Bopp Paper Roll Slitting Machine Nonwoven Pe Plastic Film Thermal Paper Slitting Machine

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

Product Description

Specification

item	value
Applicable Industries	Manufacturing Plant, Foam Slitting and Rewinding Machine
Showroom Location	None
Condition	New
Type	Slitting Rewinder
Computerized	Yes
Place of Origin	China
	Jiangsu
Brand Name	Dapeng
Voltage	220V 50HZ
Dimension(LWH)	2000mm1400mm1300mm
Weight	1500kg
Warranty	1 Year
Production Capacity	120 m/min
Key Selling Points	High-accuracy
Max. workable width	650mm,1300mm,1600mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	Motor, PLC, Touch screen
PLC Brand	MITSUBISHI
After Warranty Service	Video technical support
tension	automatic control
Meter counter	yes
operation	Touch screen and switch
Cutting speed	1-120m/minute
differential shaft rewinder	yes
max working width	650mm
min slitting width	10mm
max diameter	600mm
core diameter	3 inch

Title goes here.

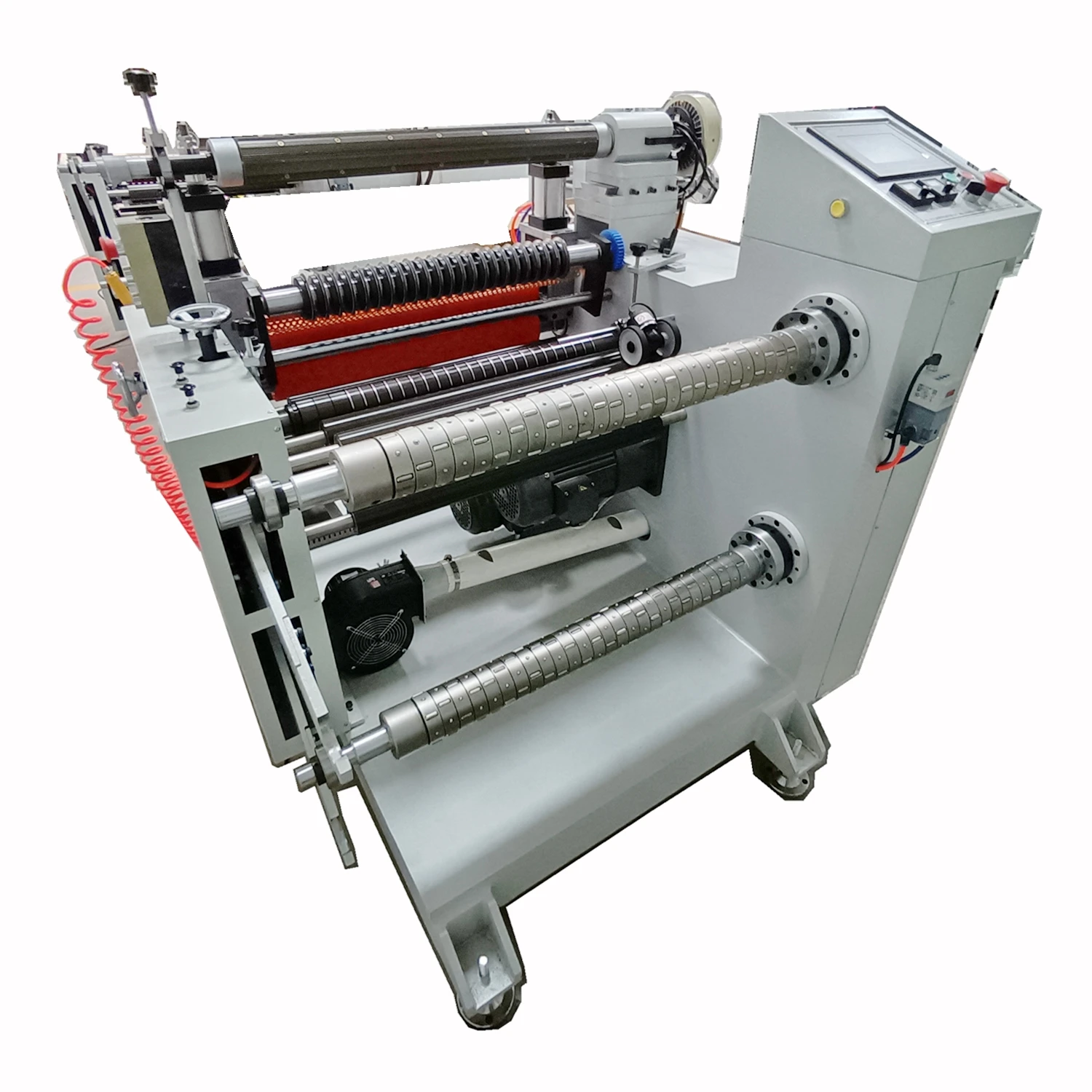

Automatic control Foam Slitting and Rewinding Machine with differential Shaft

Functional characteristics:
1.High precision and high sensitivity slitting,With 3 inch unwind and rewind air shaft.
2.Tension is controlled by magnetic powder clutch.
3.Frequency motor control speed.
4.The rubber roller is lifted up and down by air cylinder,It has the laminating and pulling material function.
5.With standard 8 rotary slitting blade,the slitting width can be adjustable,and the minimum slitting width is 25mm.
6.Automatic photoelectric rectification and meter count.
7.2 rewind shaft are controlled by magnetic powder tension independently,It can rewind at the same time and rewind separately
8.With air blower for trimming material.
9.If your material with adhesive,the aluminum guiding roller will make as the teflon roller.

Purpose:
It is applicable for slitting industrial adhesive tape,electronic material,protective film,OPP,PE,PVC,etc.This machine is widely
used in the industries such as printing,packing,electronics,leather,clothes making,plastic,etc.

Main Technical Parameters:
Model DP-650DP-1300DP-1600Max Feeding Width650mm1300mm1600mmMinimum slitting width25mm25mm25mmRewinding Diameter600mm450mm450mm
Unwinding Diameter450mm600mm600mmPrecision ± 0.1mm± 0.1mm± 0.1mmVoltage220V 50HZ380V 50HZ380V 50HZ

Model	DP-650	DP-1300	DP-1600	DP-1800
Max Feeding Width	650mm	1300mm	1600mm	1800MM
Minimum slitting width	10mm	15mm	25mm	25MM
Rewinding Diameter	600mm	1000mm	1000mm	1000mm
winding Diameter	450mm	500mm	500mm	500mm
Precision	± 0.1mm	± 0.1mm	± 0.1mm
Voltage	220V 50HZ	380V 50HZ	380V 50HZ
