20mm Tri-Clamp Sight Glass Food Grade Casting Technique for Accessing Processing Media Boxed Model With Head

(12 Lượt)

Wenzhou Suote Pharmaceutical And Chemical

• 2 năm •

20mm Tri-Clamp Sight Glass Food Grade Casting Technique for Accessing Processing Media Boxed Model With Head

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

20mm Tri-Clamp Sight Glass Food Grade Casting Technique for Accessing Processing Media Boxed Model With Head

Nhà cung cấp

Wenzhou Suote Pharmaceutical And Chemical

Thông tin nha cung cấp của bạn

Wenzhou Suote Pharmaceutical And Chemical

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

Product Description

DESCRIPTION

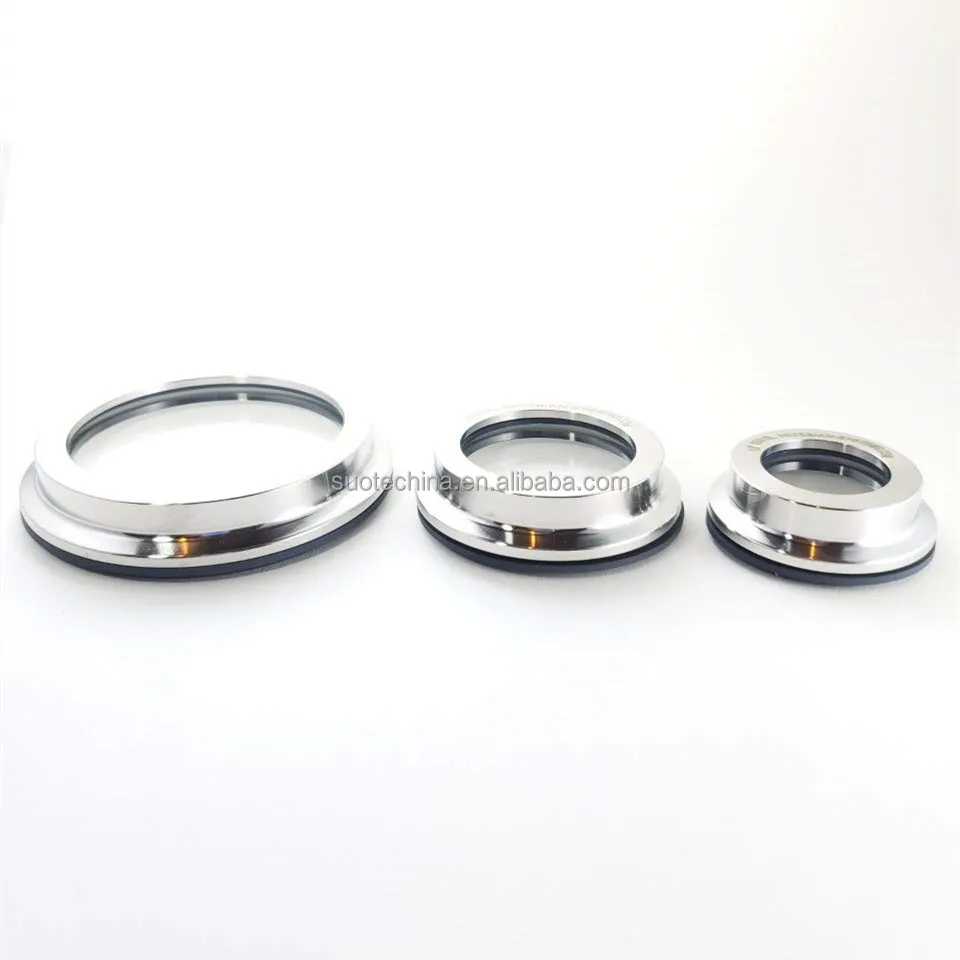

Tri-Clamp Sight Glasses Cap Style
Maximum operating temperature: 200°F
Maximum operating pressure: 95 to 145 PSI dependent on size
Working PSI/temp. assumes absence of thermal shock

Size (spec): 1.5" & 2" & 3"
Style (spec): Tri-Clamp (NOTE: REQUIRES GREATER FORCE TO CLAMP ON CONNECTION!) Providing a safe seal.
Pharmaceutical Grade, Good Chemical & Petroleum, Resistance

Gain sight access to processing media with tri-clamp sight glass cap style

Description:
Clamp sight glass allows for the ability to visually inspect tube media. Clamp connection requires the use of gaskets and clamp for a secure fit. Available for tube outside diameter connections up to 4".

Quickly and safely inspect lines without accidentally opening the wrong end cap. The sight glass end cap is compatible with all other tri-clamp fittings and gaskets. Available in sizes ranging from 1" - 6". This product is certified for sanitary grade line processing in the food, beverage and pharmaceutical industries.

Sanitary Size	OD of Flange End	ID of Tube	OD of Tube
1/2″	0.992	0.370	0.500
3/4″	0.992	0.620	0.750
1″	1.984	0.870	1.000
1 1/2″	1.984	1.370	1.500
2″	2.516	1.870	2.000
2 1/2″	3.047	2.370	2.500
3″	3.579	2.870	3.000
4″	4.682	3.834	4.000
6″	6.562	5.782	6.000
8″	8.602	7.782	8.000
10″	10.570	9.782	10.000
12″	12.570	11.760	12.000

Details Images

FAQ

Q: I have a header that is capped with 8" I-Line fittings. The water pressure is 60 psi in this tube. I am trying to learn why they would have designed this with the I line and not just a standard Tri-Clamp fitting. Any information would be appreciated.

A: A lot of dairy applications utilize I-Line fittings. There is no advantage either way between I-Line vs Tri-Clamp fittings other than the tri-clamp fittings are more readably accessible. Since the tube outside diameters is the same, one option you can take is
to remove the current I-Line fitting and weld in place a new tri-clamp ferrule.

Q: I need a quote for one of my customers for some solid end caps. Just wondering what the difference is between the Tri-Clamp end caps (16AMP) and the BioPharm End Caps. Is it just the PL finish?

A: The surface finish on our regular end caps is 32Ra. Bio-Pharm fittings have better finish options available at 20Ra and 15Ra. The lower the number the smoother the finish at a microscopic level.

Q: The pictures of these clamps on your website look like the 100-150 PSI rated versions of Single Pin Heavy Duty Sanitary Clamps (13MHHM). Please verify they are of the service duty listed on your website (500 psi at 70°F. At that rating, they should be the duty equivalent of VNE or Dixon 13MHHM clamps.

A: Those clamps (13MHHM) are the equivalent of VNE or Dixon 13MHHM clamps. The pressure ratings are below and verified as being accurate. Please let me know if you have any questions.

Q: Are sanitary fitting clamps designed to support weight?

A: Tri-Clamp fittings, specifically the clamps, are not designed to be weight bearing. If you are planning to attach a component to your processing line it must be supported by other means. We do offer a line of tube hangers that can be used to accommodate the extra weight. Typically these tube hangers are mounted to the ceiling.

Q: Can you supply these end caps with mirror finish?
A: We can polish all of our fittings to a 20Ra (Roughness Average) finish. They can also be electropolished if necessary. While we don't guarantee you can see yourself in the fittings, they will be extremely bright, shiny and unblemished.Please call us for special orders and we'll let you know what we can do for timing and pricing. Thanks!
