1. Working process:

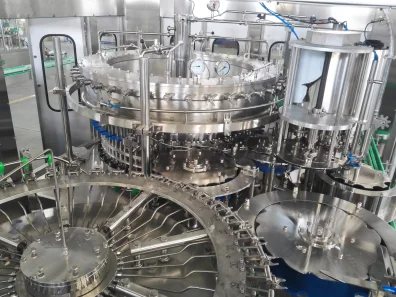

The bottle is passed through the air duct, and then sent to the three-in-one washing machine through the bottle star wheel. The rotary plate of the bottle washing machine is equipped with a bottle clamp, which clamps the bottle mouth and turns 180° along a guide rail to make the bottle mouth downward. In a specific area of the bottle washer, the nozzle of the bottle rinser sprays bottle-rinsing water to rinse the inner wall of the bottle. After the bottle is rinsed and drained, the bottle is clamped by the bottle clamp and then turned over 180° along the guide rail to make the bottle mouth upward. The washed bottles are exported from the bottle washing machine through the bottle star wheel and transferred to the filling machine. The bottle entering the filling machine is clamped by the bottleneck support plate and the bottle is raised under the action of the cam, and then the filling valve is pushed open by the bottle mouth. Filling adopts gravity filling method. After the filling valve is opened, the material passes through the filling valve to complete the filling process. After the filling is finished, the bottle mouth drops to leave the filling valve, and the bottle enters the capping machine through the bottleneck transition dial. The anti-rotation knife on the capping machine jams the bottleneck to keep the bottle upright and prevent it from rotating. The capping head keeps revolution and rotation on the capping machine, and realizes the actions of capping, capping, capping, and capping under the action of the cam, completing the entire capping process. The finished bottles are conveyed from the capping machine to the bottle conveying chain through the bottle discharging dial wheel, and the three-in-one machine is conveyed by the conveying chain.

2. Main features:

(1) This machine has compact structure, complete control system, convenient operation and high degree of automation;

(2) To change the bottle shape, only need to replace the screw cap part of the star wheel and the arc guide plate can be realized;

(3) The parts in contact with the materials are made of high-quality stainless steel, no process dead angle, easy to clean;

(4) The high-speed filling valve is adopted, and the liquid level is accurate without liquid loss, ensuring the requirements of the filling process;

(5) The capping head adopts a magnetic constant torque device to ensure the quality of the capping and will not damage the cap;

(6) Adopt an efficient cover management system, with complete automatic control and protectiondevices;

(9) The main electrical components and pneumatic components are all world products;

(7) There is a complete overload protection device, which can effectively protect the safety of equipment and operators;

(8) The control system has functions such as production speed control, missing cap detection, automatic stop of jammed bottles and output counting;

(10) The whole machine operation adopts advanced touch screen control, which can realize man-machine dialogue operation.

Product Parameters

Customized Commercial Production Efficient 5500b/h Fully Automatic Carbonated Beverage Production Line

Carbonated Beverage Production Line
raw material	Apple, grape, orange, bayberry, strawberry, hawthorn, banana, blueberry, dragon fruit, etc.
Finished Product	Carbonated Beverage
Capacity	5500 B/H
Product packaging	Can/Tetra Pak/Glass Bottle/Plastic Jug
Output	According to customer needs
