Multi-Functional Extraction Tank for Various Technological Operations for Chemical Equipment

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Multi-Functional Extraction Tank for Various Technological Operations for Chemical Equipment

Nhà cung cấp

Wenzhou Suote Pharmaceutical And Chemical

Thông tin nha cung cấp của bạn

Wenzhou Suote Pharmaceutical And Chemical

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

Company Profile

Our Certificate

The multi-functional extraction tank can be used for various technological operations such as atmospheric pressure, micro-pressure, water decoction, warm immersion, heat reflux, forced circulation, percolation, essential oil extraction and recovery of organic solvents in the traditional Chinese medicine, food, chemical, sugar-making and oil industries. It is applicable to all technological processes such as water alcohol extraction, steaming, and recovery of solvents in residues, achieving multi-purpose use of one tank and high equipment utilization rate. The tank body is equipped with a CIP cleaning automatic etc., ensuring simple operation and compliance with GMP standards. The material of the inner cylinder of the equipment is imported SUS304, the jacket is insulated with a fully enclosed aluminum silicate blanket, and the outer cylinder is covered with SUS304 matte thin steel plate. The complete set of equipment supply includes accessories such as a demister, a condenser, a cooler, an oil-water separator, a filter, a cylinder control console.

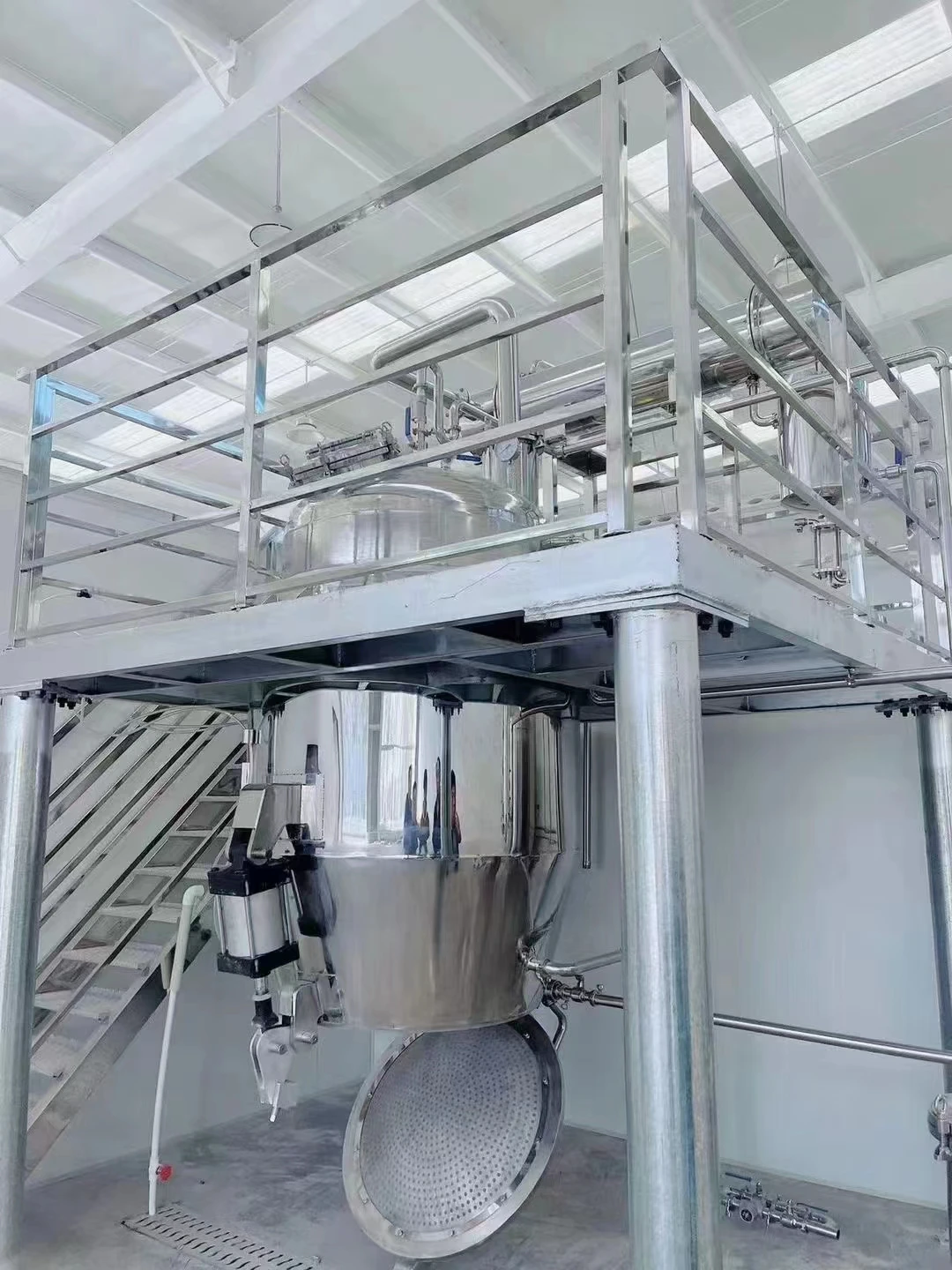

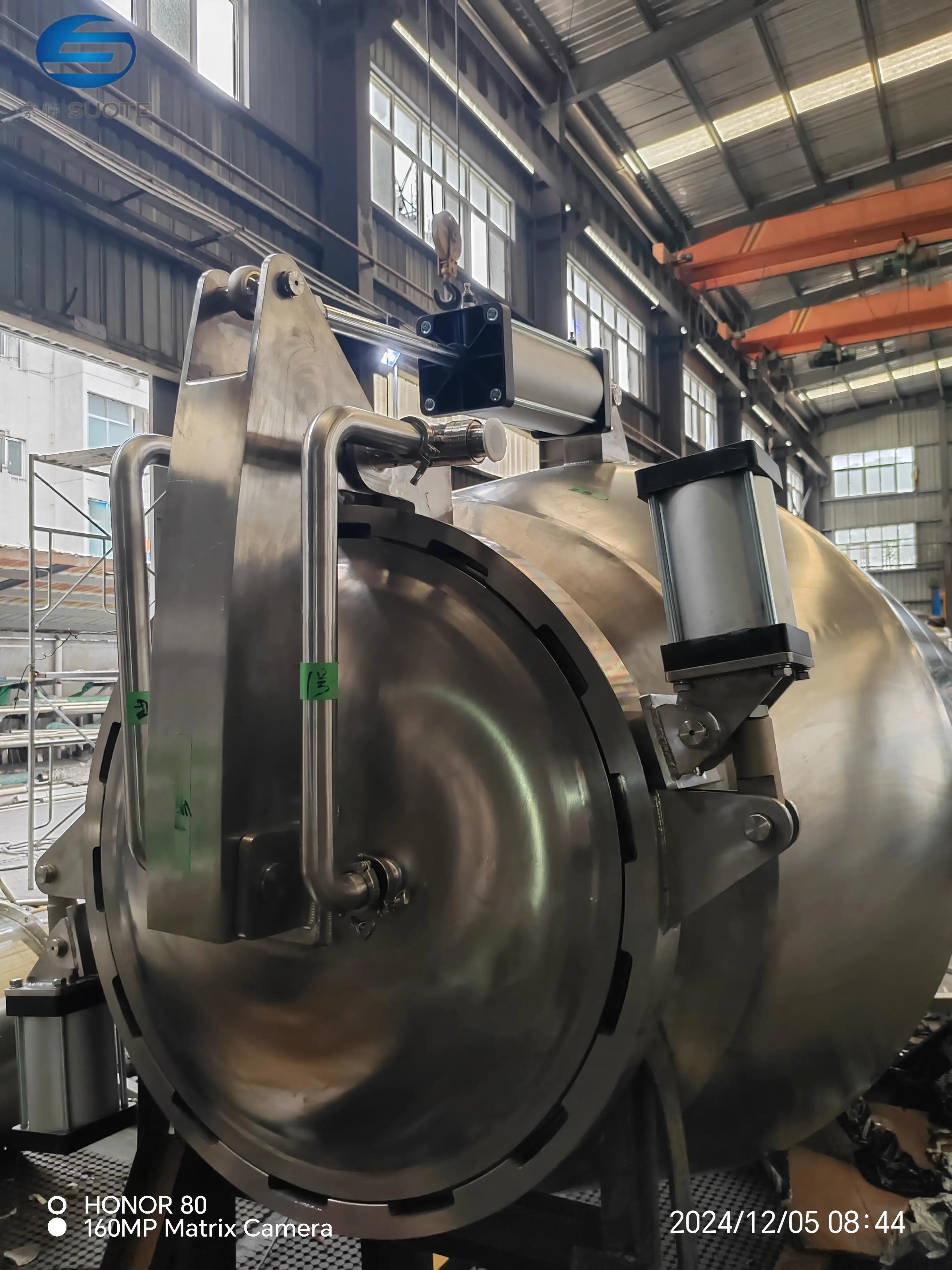

System composition: The main forms of the equipment include a straight cone type, a mushroom type, a straight cylinder type, an oblique cone type and an inverted cone type. It can be used for static extraction, and can also be configured with a stirrer for dynamic extraction according to the needs of the production process. 1.The main tank body, with a jacket and insulation, has a manhole on the top and a slag discharge door controlled by a cylinder at the bottom, with low labor intensity. 2.The catcher is mainly used to eliminate the foam generated when decocting traditional Chinese medicine and prevent the residue in the liquid flow steam from entering the condenser. 3.The condenser is mainly used for condensing the liquid medicine steam and recovering alcohol. 4.The cooler is mainly used for cooling the condensate and the solvent. 5.The oil-water separator is mainly used to separate the oil from the cooled recovery liquid during oil extraction to obtain the required essential oil. 6.The gas-liquid separator

Products Display

with more than 20 years of technological in this area .Suote is your trusted partner !

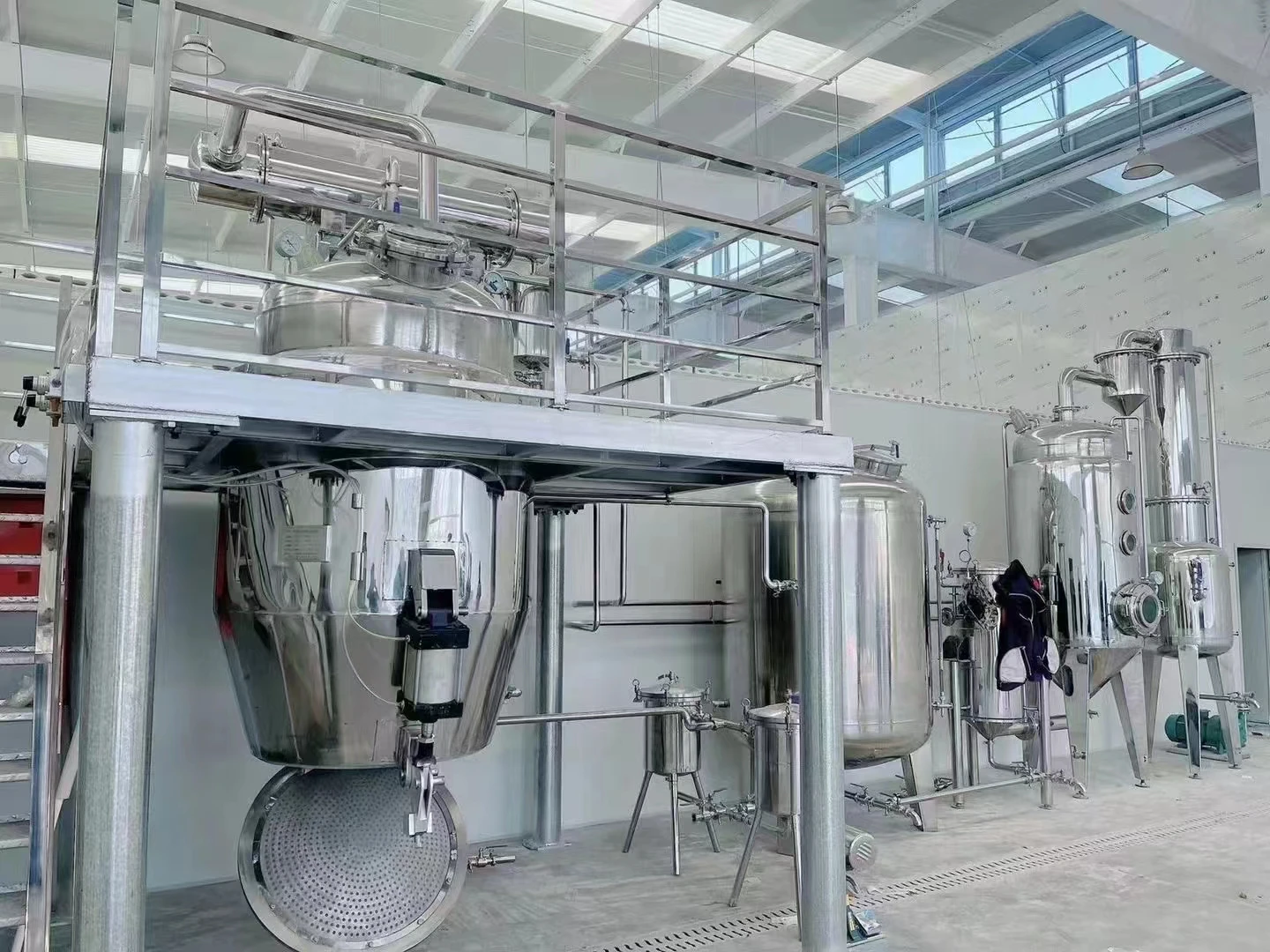

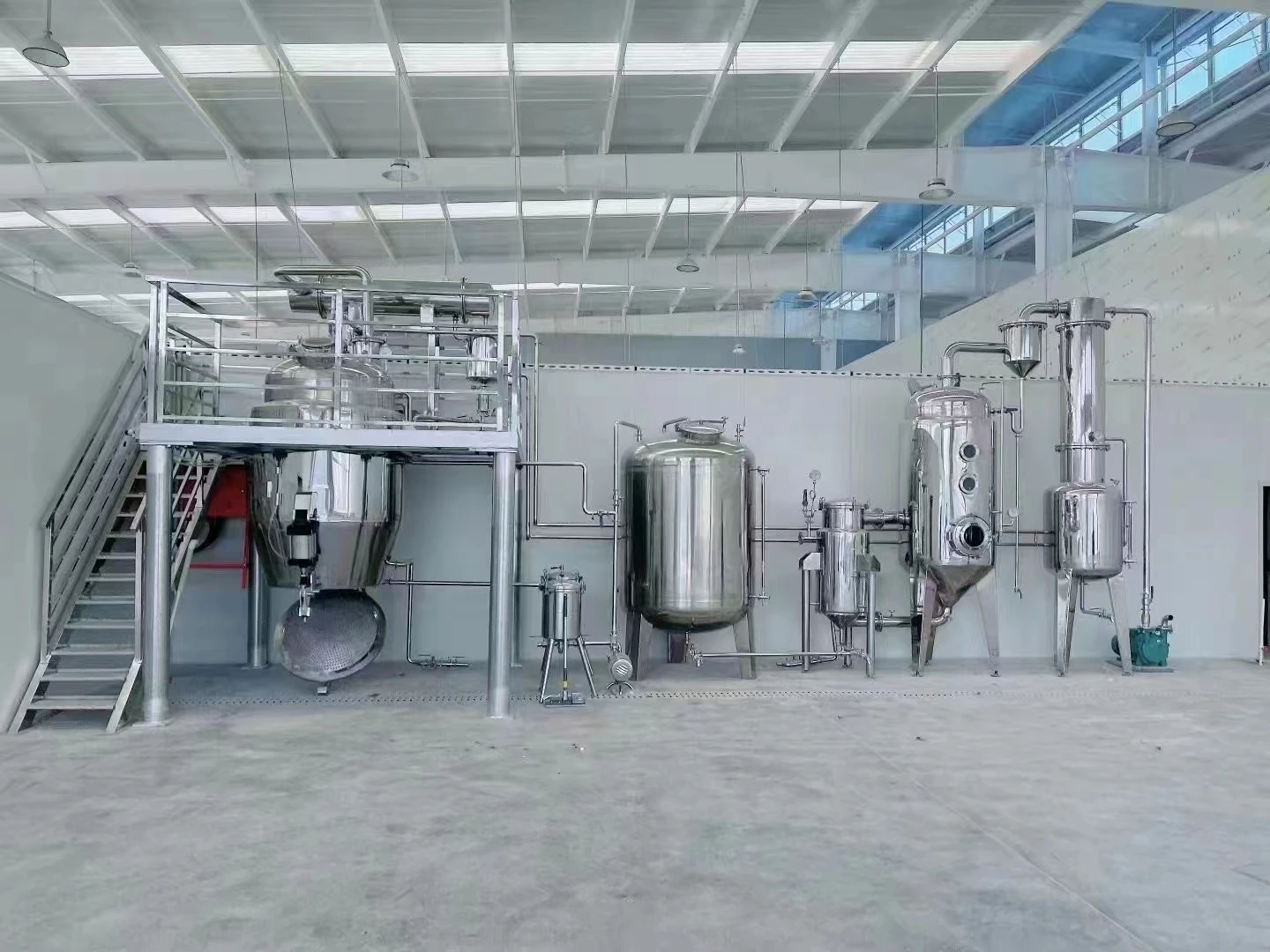

Large Multi-Functional Extraction, Concentration, Recovery Set

The ultra-sonic multifunctional extraction, concentration and reclamation set is a new product researched and developed by our company while we are producing traditional large-sized multifunctional extraction units. It is mainly used for research and development of new processes in various test plants, scientific section, etc. It has unique functions for small batches. It uses the ultrasonic technology to extract water soluble substances from Chinese plants and other biological tissues.

Advantages: short extraction time, low temperature, low content of impurities, high efficiency, etc. The ultrasonic wave is transmitted in sound-transmitting extraction media. The mechanical, thermal and cavitation effects caused make solid granules and biological tissues in the media broken, emulsified and dissolved, so that the activity of biological tissues is maintained, and the evenness of extraction media is greatly enhanced.

Product Parameters

Product name	Extraction & Concentration Equipment
Material	SUS304/316L
Product Keywords	Extraction & Concentration Unit
Application Range	Lab Testing, Small Batch Production, etc
Standard	GMP
Heating Type	Electric or steam heating
Power	4-15KW
Warranty	1 year
Capacity	1 ton
