304 Sanitary Tri-Clamp Manual Ball Valve 2 Inch Three-Way Encapsulated High Temperature Resistance OEM Customizable Water Media

(17 Lượt)

Wenzhou Suote Pharmaceutical And Chemical

• 2 năm •

304 Sanitary Tri-Clamp Manual Ball Valve 2 Inch Three-Way Encapsulated High Temperature Resistance OEM Customizable Water Media

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

304 Sanitary Tri-Clamp Manual Ball Valve 2 Inch Three-Way Encapsulated High Temperature Resistance OEM Customizable Water Media

Nhà cung cấp

Wenzhou Suote Pharmaceutical And Chemical

Thông tin nha cung cấp của bạn

Wenzhou Suote Pharmaceutical And Chemical

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm

Product Description

DESCRIPTION

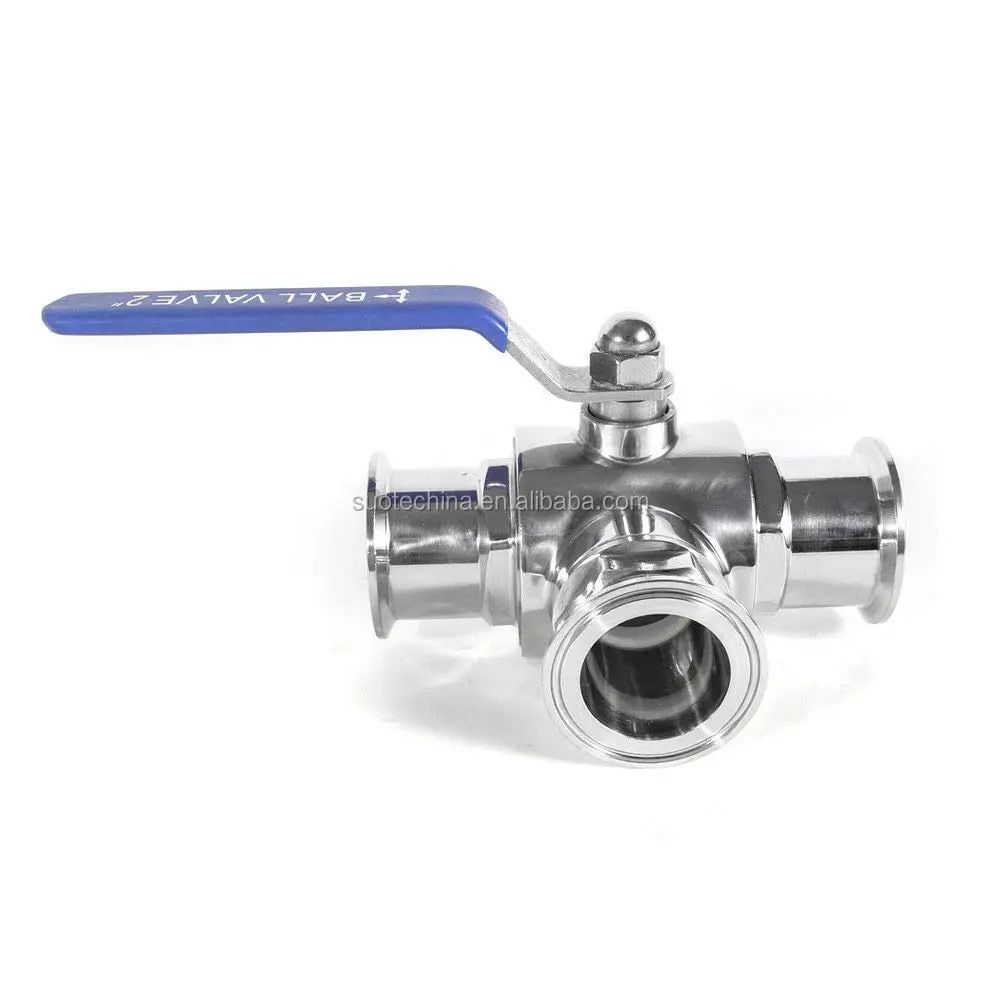

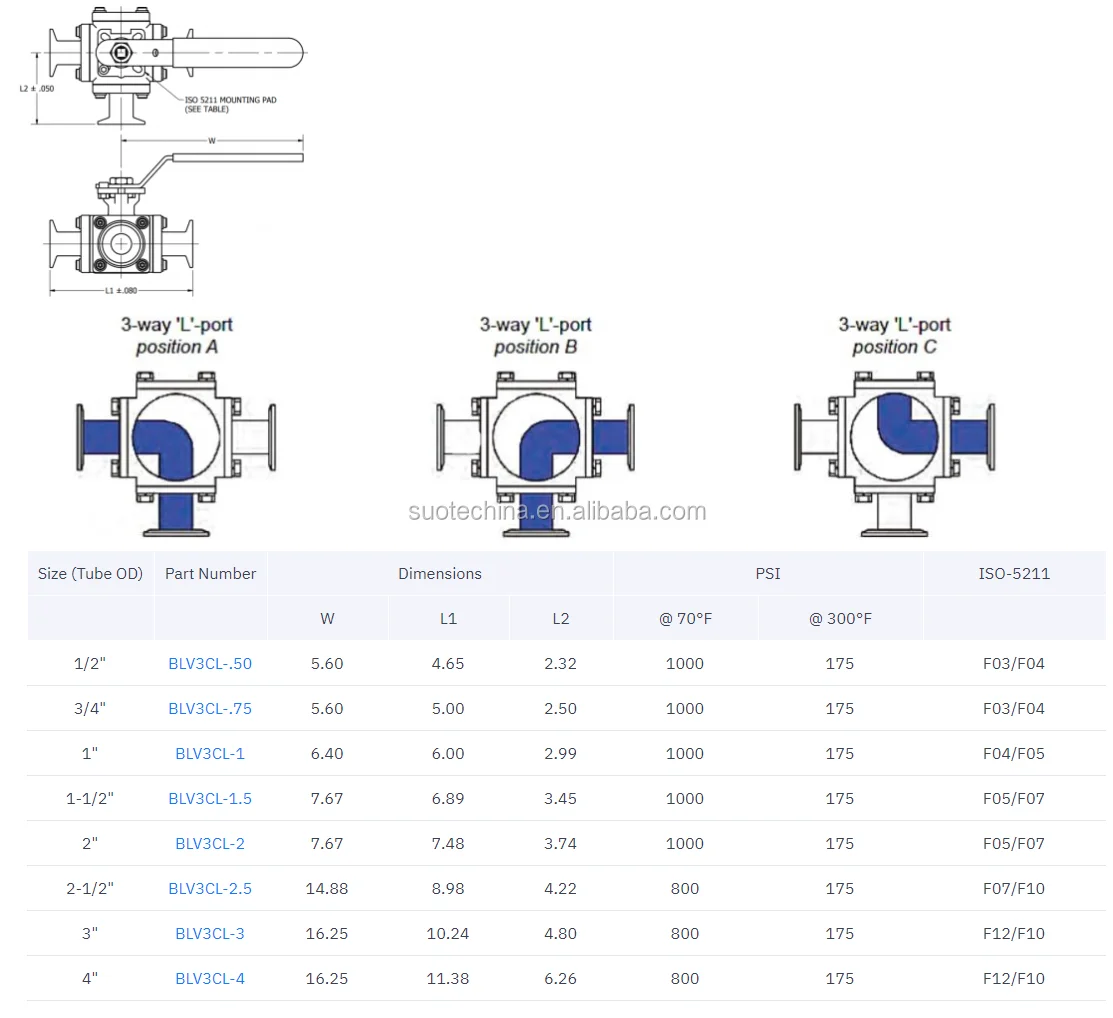

"L" Pattern Three-Way stainless steel clamp ball valve for process flow control. L-Style manual ball valve allows for easy control the flow of your process lines with this encapsulated ball valve. Connect to existing sanitary process lines with tri-clover clamp connections. * Product ships factory direct
2",Ф38, chuck outer diameter 50.5mm;
stainless steel SUS304
It is mainly used in ideal supporting products for food and beverage, dairy products, medical treatment, beer brewing, water supply, pharmaceutical, biological engineering and fine chemical engineering projects

3-Way Ball Valve, 2 Inch Sanitary Ball Valve Clamp Stainless Steel 304 Three Way Ball Valve Three Way Clamp Connection Valve with Blue Locking Handle

Suote carries an extensive supply of commercial brewery,winery and food processing equipment.From basic supplies like fittings and valves,hose and food-grade washdown equipment,to bottling and packaging equipment for commercial use. full port ball valve with locking device is not only own with the functions of opening quickly, easy to maintain, good sealing but also safety fire-safe and anti-static designs. Our company designs various kinds of ball valves for one-piece, two-piece, three-piece, thread end, flange type, full port. Mini ball valve is also available. The selection of ball valve material includes stainless steel 304 and stainless steel 316. Chose the suitable ball valve to use in piping system.

Serviceable ball valve

This stainless steel ball valve can be taken apart via threads,female npt ports.It can be easier serviced and cleaned.

Seats & Seals

The material of seal is PTFE(teflon),it offers excellent corrosion resistance for most applications.

Main features

* ★【Long Life】Due to PTFE has a good self-lubrication, and the valve body, ball, valve stem friction and wear, so greatly increased the life of the ball valve.
* ★【Good Sealing Performance】 The sealing performance is good, most of the ball valve seats are made of PTFE and other elastic materials, the general sealability is easy to ensure that all widely used.
* ★【Small Fluid Resistance】The fluid resistance is small, whether it is shrinkage or the full-ball valve flow resistance coefficient is the smallest of all valves.
* ★【Reliable】High reliability, ball and valve seat will not be bruised, the valve rod will not fly out of rapid wear, fire, anti-static function.
* ★【Application】It is mainly used in ideal supporting products for food and beverage, dairy products, medical treatment, beer brewing, water supply, pharmaceutical, biological engineering and fine chemical engineering projects

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Component	Description	Description
1	Body	TP316 Stainless Steel
2	Cap	TP316 Stainless Steel
3	Ball	TP316 Stainless Steel
4	Ball	PTFE
5	Seal	PTFE
6	Thrust Washer	PTFE
7	Stem Packing	PTFE
8	Gland Nut	TP304 Stainless Steel
9	Spring Washer	TP304 Stainless Steel
10	Stem Nut	TP304 Stainless Steel
11	Stem	TP304 Stainless Steel
12	Spring Washer	TP304 Stainless Steel
13	Nut	TP304 Stainless Steel
14	Bolt	TP304 Stainless Steel
15	Handle	TP304 Stainless Steel
16	Handle Sleeve	PVC
17	Locking Device	TP304 Stainless Steel

Sanitary Size	OD of Flange End	ID of Tube	OD of Tube
1/2″	0.992	0.370	0.500
3/4″	0.992	0.620	0.750
1″	1.984	0.870	1.000
1 1/2″	1.984	1.370	1.500
2″	2.516	1.870	2.000
2 1/2″	3.047	2.370	2.500
3″	3.579	2.870	3.000
4″	4.682	3.834	4.000
6″	6.562	5.782	6.000
8″	8.602	7.782	8.000
10″	10.570	9.782	10.000
12″	12.570	11.760	12.000

Details Images

with more than 20 years of technological in this area .Suote pharmaceutical is your trusted partner !

FAQ

Q: Are these valves certified for drinking water applications?

A: These valves are suitable for use with water. They are manufactured from 316L Stainless Steel which is corrosion resistant. They are not, however, certified by any governing body as being suitable for water applications.

Q: Is this valve suitable for gasoline service?

A:The one-piece threaded ball valve is not rated to handle gasoline material.

Q: Is there a CAD file available for this valve? I would like to integrate it into my assembly and a pre-made component would be
helpful.

A: I'm sorry but we do not have any associated CAD files for our One-Piece Threaded Ball Valves available.

Q: Are these valves rated for 450psi nitrogen at 100 degrees F?

A: hese valves have an operating working pressure of 1000 PSI with a temperature range of -4°F to 392°F.

Q: Are these valves full port?
A: These valves can open up to allow 100% material flow-through rates.
