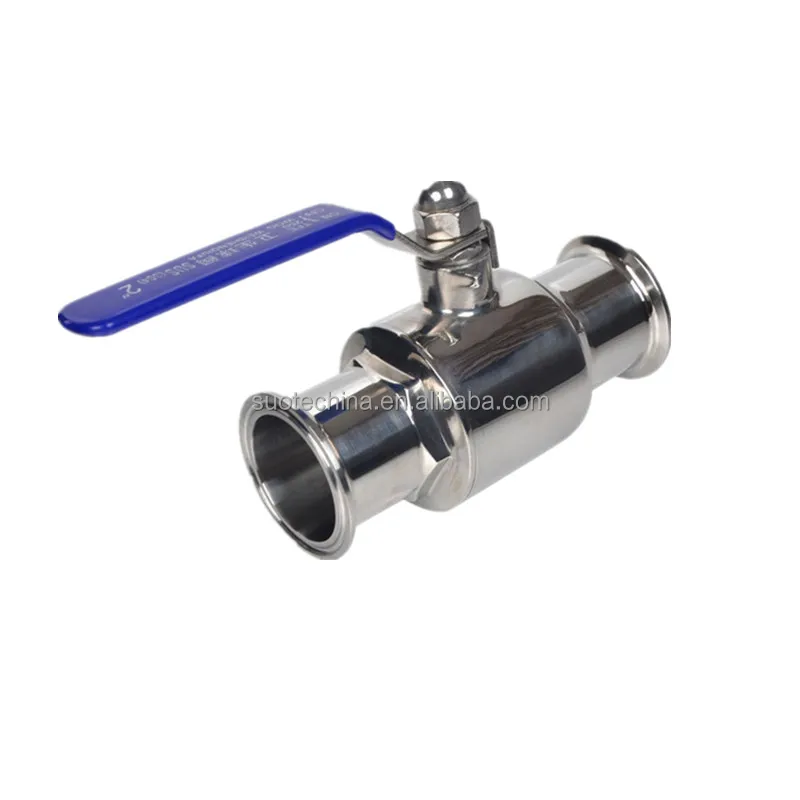

Sanitary Ball Valve 304 316L Stainless Steel Tri-Clamp Ball Valve Straight-through Handle Valve PTFE Lined

Liên hệ nhà cung cấp Chat now

Các đề xuất khác cho doanh nghiệp của bạn

Gợi ý sản phẩm tương tự để bạn so sánh nhanh và gửi yêu cầu báo giá.

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực
Thương hiệu
Mã sản phẩm
Tên sản phẩm
Sanitary Ball Valve 304 316L Stainless Steel Tri-Clamp Ball Valve Straight-through Handle Valve PTFE Lined
Nhà cung cấp
Wenzhou Suote Pharmaceutical And Chemical

Thông tin nha cung cấp của bạn

Thời gian đáp ứng
≤2h
Tỷ lệ giao hàng đúng hẹn
95%

Mô tả sản phẩm

Product Description
DESCRIPTION
Specification:
2",Ф38, chuck outer diameter 50.5mm;
stainless steel SUS304
It is mainly used in ideal supporting products for food and beverage, dairy products, medical treatment, beer brewing, water supply, biological engineering and fine chemical engineering projects

Straight-through ball valve, sanitary ball valve, stainless steel ball valve, tri-clamp connection ball valve with blue locking handle.

Suote carries an extensive supply of commercial brewery,winery and food processing equipment.From basic supplies like fittings and valves,hose and food-grade washdown equipment,to bottling and packaging equipment for commercial use. full port ball valve with locking device is not only own with the functions of opening quickly, easy to maintain, good sealing but also safety fire-safe and anti-static designs. Our company designs various kinds of ball valves for one-piece, two-piece, three-piece, thread end, flange type, full port. Mini ball valve is also available. The selection of ball valve material includes stainless steel 304 and stainless steel 316. Chose the suitable ball valve to use in piping system.

Serviceable ball valve

This stainless steel ball valve can be taken apart via threads,female npt ports.It can be easier serviced and cleaned.

Seats & Seals

The material of seal is PTFE(teflon),it offers excellent corrosion resistance for most applications.
Main features
* ★【Long Life】Due to PTFE has a good self-lubrication, and the valve body, ball, valve stem friction and wear, so greatly increased the life of the ball valve.
* ★【Good Sealing Performance】 The sealing performance is good, most of the ball valve seats are made of PTFE and other elastic materials, the general sealability is easy to ensure that all widely used.
* ★【Small Fluid Resistance】The fluid resistance is small, whether it is shrinkage or the full-ball valve flow resistance coefficient is the smallest of all valves.
* ★【Reliable】High reliability, ball and valve seat will not be bruised, the valve rod will not fly out of rapid wear, fire, anti-static function.
* ★【Application】It is mainly used in ideal supporting products for food and beverage, dairy products, medical treatment, beer brewing, water supply, biological engineering and fine chemical engineering projects

Component
Description
Description
1
Body
TP316 Stainless Steel
2
Cap
TP316 Stainless Steel
3
Ball
TP316 Stainless Steel
4
Ball
PTFE
5
Seal
PTFE
6
Thrust Washer
PTFE
7
Stem Packing
PTFE
8
Gland Nut
TP304 Stainless Steel
9
Spring Washer
TP304 Stainless Steel
10
Stem Nut
TP304 Stainless Steel
11
Stem
TP304 Stainless Steel
12
Spring Washer
TP304 Stainless Steel
13
Nut
TP304 Stainless Steel
14
Bolt
TP304 Stainless Steel
15
Handle
TP304 Stainless Steel
16
Handle Sleeve
PVC
17
Locking Device
TP304 Stainless Steel
Sanitary Size
OD of Flange End
ID of Tube
OD of Tube
1/2″
0.992
0.370
0.500
3/4″
0.992
0.620
0.750
1″
1.984
0.870
1.000
1 1/2″
1.984
1.370
1.500
2″
2.516
1.870
2.000
2 1/2″
3.047
2.370
2.500
3″
3.579
2.870
3.000
4″
4.682
3.834
4.000
6″
6.562
5.782
6.000
8″
8.602
7.782
8.000
10″
10.570
9.782
10.000
12″
12.570
11.760
12.000

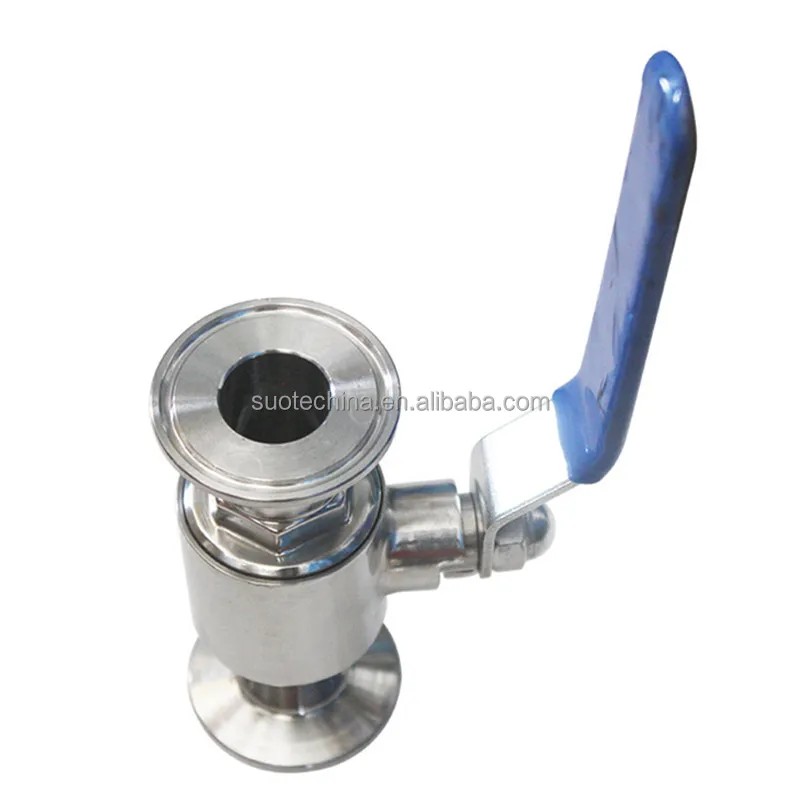

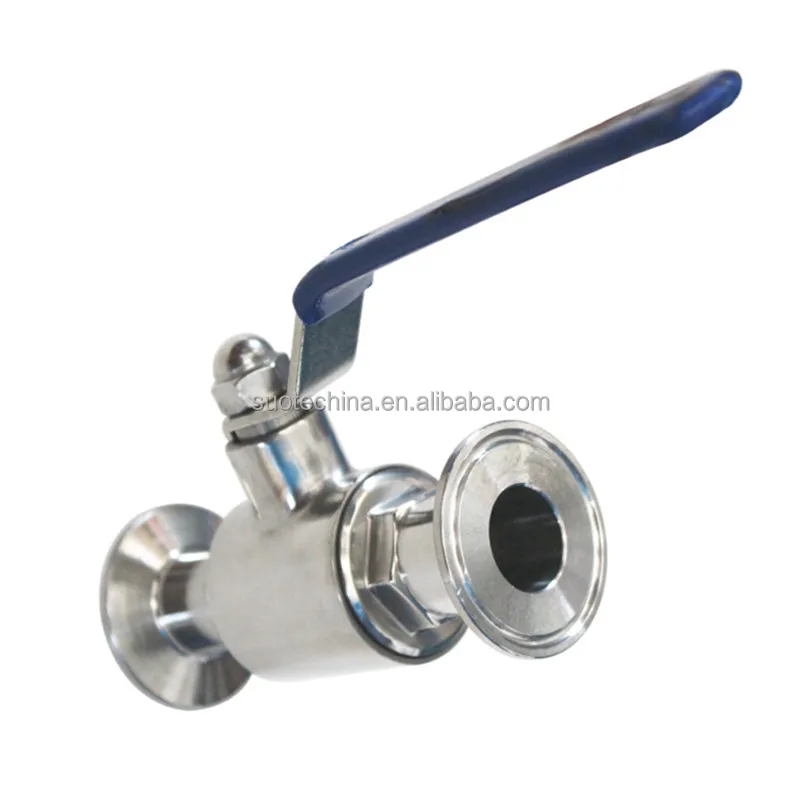

Details Images
FAQ

Q: Are these valves certified for drinking water applications?
A: These valves are suitable for use with water. They are manufactured from 316L Stainless Steel which is corrosion resistant. They are not, however, certified by any governing body as being suitable for water applications.

Q: Is this valve suitable for gasoline service?
A:The one-piece threaded ball valve is not rated to handle gasoline material.

Q: Is there a CAD file available for this valve? I would like to integrate it into my assembly and a pre-made component would be
helpful.
A: I'm sorry but we do not have any associated CAD files for our One-Piece Threaded Ball Valves available.

Q: Are these valves rated for 450psi nitrogen at 100 degrees F?
A: hese valves have an operating working pressure of 1000 PSI with a temperature range of -4°F to 392°F.

Q: Are these valves full port?
A: These valves can open up to allow 100% material flow-through rates.
